US MOTORS WD1P2ACR WASHDOWN MOTORS
US MOTORS WD1P2ACR WASHDOWN MOTORS

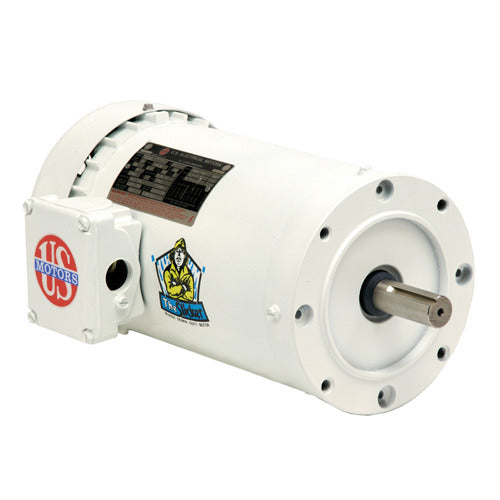

U.S. Motors WD1P2ACR 1 HP 1725 RPM Washdown Duty Motor 208-230/460 V 60 Hz 56C

US MOTORS
Brand: US MOTORS
SKU: WD1P2ACR
Availability: In Stock

Ships same day if ordered by 12 pm
$678.17
$678.17
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The U.S. Motors WD1P2ACR is a one horsepower washdown duty motor designed for reliability in demanding environments. The motor operates at a speed of 1725 RPM and is suitable for three-phase applications.

  • Power: 1 HP
  • Voltage: 208-230/460 V
  • Frequency: 60 Hz

Product Highlights

This motor is ideal for various industrial and commercial applications, particularly where water exposure is a concern.

Product Information

Standard Information

  • Brand: U.S. Motors
  • MPN: WD1P2ACR
Technical Specifications
Frame
56C
C Dimension
12.2 inches
Duty
Continuous Duty
Full Load Efficiency
85.5%
Enclosure Designation
TENV - Totally Enclosed Non-Ventilated
Phase
Three Phase
Mounting
C-Face
Service Factor
1.15
Voltage Rating
208-230/460
Full Load rpm
1725 rpm
Full Load Amps
3.4-3.3/1.8
Weight
26.0 LB
Insulation
F
EAN
786382117115
