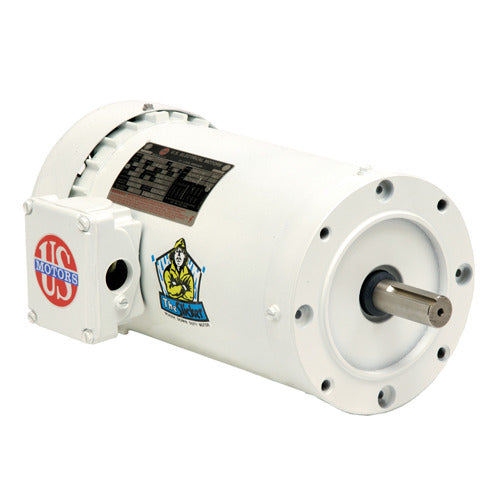

U.S. Motors WD1E2A14CR Washdown Duty Three Phase TENV C-Face Motor

Product Description

The U.S. Motors WD1E2A14CR is a washdown duty three-phase TENV C-face motor. This motor is known for its robust construction and reliable performance in various applications. It operates at one horsepower and a speed of one thousand eight hundred rpm, suitable for demanding environments.

• Efficient washdown duty motor application.
• Three-phase operation with a voltage rating of 208-230/460.
• Designed with a totally enclosed non-ventilated (TENV) enclosure for durability.

Product Highlights

This motor is ideal for use in environments that require frequent washing and exposure to moisture. It is designed to withstand the rigors of washdown applications, making it a reliable choice for industrial use.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: WD1E2A14CR

Technical Specifications

• Full Load rpm: 1725 rpm
• Phase: Three Phase
• Enclosure: TENV
• Full Load Efficiency: 82.5%
• Service Factor: 1.15
• Weight: 37.0 LB
• Frame: 143TC
• Voltage Rating: 208-230/460
