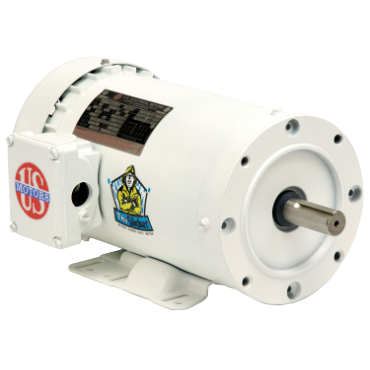

U.S. Motors WD14AA2PZ7 Washdown Duty Single Phase TEAO Yoke Motor

Product Description

The U.S. Motors WD14AA2PZ7 is a washdown duty single-phase motor designed for durability and efficiency. This motor is suitable for various applications, particularly in environments requiring resistance to moisture and corrosion. It operates at one-fourth horsepower with a speed of 1800 rpm, making it ideal for tasks needing reliable performance.

• 1/4 horsepower
• TEAO (Totally Enclosed Air Over) design
• Suitable for washdown applications

Product Highlights

This motor features yoke mounting and operates at 60 Hz with a dual voltage rating of 115/230 volts. Its continuous duty design ensures consistent performance for prolonged periods, suitable for continuous operation applications.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 102073310

Technical Specifications

• Frame: 56, 56YZ
• Full Load RPM: 1700 rpm
• Phase: Single Phase
• Insulation: F
• Motor Application: Washdown Duty
• Enclosure: TEAO
• Full Load Amps: 3.5/1.7
• Service Factor: 1
