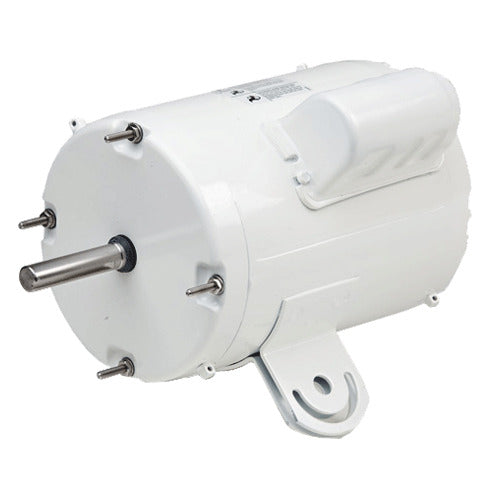

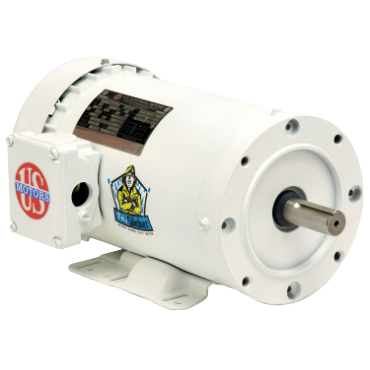

U.S. Motors WD13AA2PZ7 Washdown Duty Single Phase TEAO Yoke Motor

Product Description

The U.S. Motors WD13AA2PZ7 is a washdown duty single phase TEAO yoke motor designed for efficiency in a variety of applications. This motor features a power rating of one-third horsepower and runs at 1800 rpm, making it suitable for tasks requiring reliable performance.

• Rated for continuous duty operation
• Capable of running at 115/230 voltage
• Built with a durable TEAO enclosure to protect against moisture

Product Highlights

This motor is ideal for washdown applications in environments where water and cleaning agents may be present. With its yoke mounting and sturdy frame, it can be used in various industrial applications.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: WD13AA2PZ7

Technical Specifications

• HP: 1/3
• Voltage Rating: 115/230
• RPM: 1800
• Frame: 56YZ
• Enclosure: TEAO
• Phase: Single Phase
• Full Load Amps: 4.9/2.5
• Thermal Protection: Automatic Reset
• Weight: 16.0 LB
• C Dimension: 10.8
