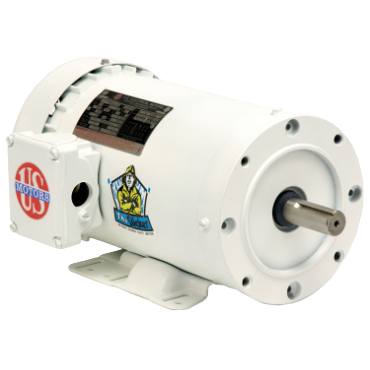

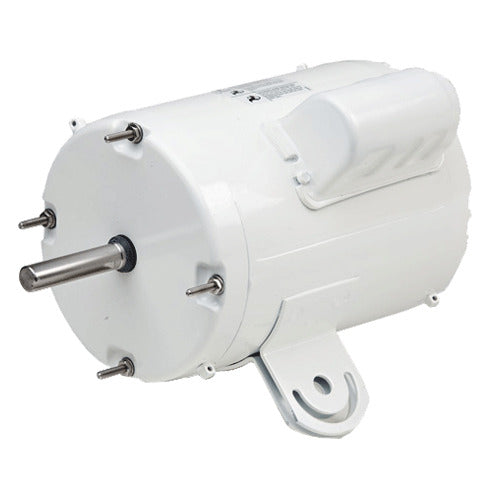

U.S. Motors WD12AA2PZ7 Washdown Duty Single Phase TEAO Yoke Motor

Product Description

The U.S. Motors WD12AA2PZ7 is a washdown duty single phase TEAO yoke motor designed for demanding applications. This motor operates at one half horsepower with a speed of eighteen hundred RPM, ensuring reliable performance in various settings.

• Powerful washdown duty motor application
• Designed to operate efficiently at 60 Hz
• Yoke mounting for versatile installation

Product Highlights

This motor features a totally enclosed air-over (TEAO) design, which protects the internal components from moisture and contaminants, making it suitable for wet environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: WD12AA2PZ7

Technical Specifications

• HP: 1/2
• Voltage Rating: 115/230
• Full Load Amps: 5.9/2.9
• Frame: 56YZ
• Duty Type: Continuous Duty
• Mounting Type: Yoke/Pedestal
• Phase: Single Phase
• Enclosure Designation: TEAO - Totally Enclosed Air Over
