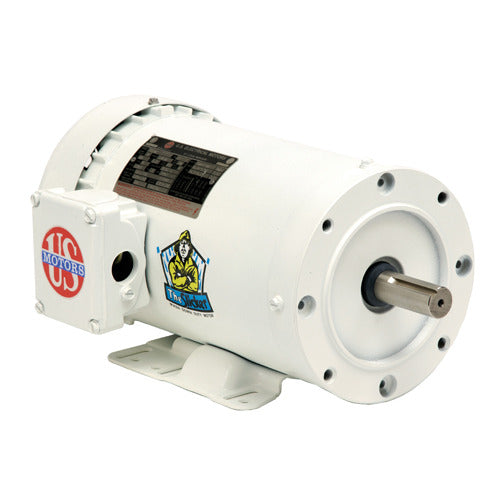

U.S. Motors WD10P2DC Washdown Duty Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors WD10P2DC is a three-phase AC motor designed for washdown applications. It features a totally enclosed fan-cooled (TEFC) design, making it suitable for environments where water exposure is a concern. This motor operates at ten horsepower and has a full load RPM rating of one thousand eight hundred revolutions per minute.

• Continuous duty operation.
• Voltage ratings of two hundred eight to two hundred thirty volts, four hundred sixty volts, and one hundred ninety to three hundred eighty volts.
• Durable construction with a rolled steel frame and efficient ball bearings.

Product Highlights

This motor is ideal for various washdown applications, ensuring reliable performance and durability in demanding conditions.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: WD10P2DC

Technical Specifications

• Motor Application: Washdown Duty
• Phase: Three Phase
• Duty: Continuous Duty
• Efficiency: 91.7%
• Full Load Amps: 26.5-23.9/11.9
• Insulation Class: F
• Voltage Rating: 208-230/460 & 190/380
• Mounting: Horizontal - Footed
• Frame Size: 215TC
• Enclosure Type: TEFC
• C Dimension: 20.4 in
