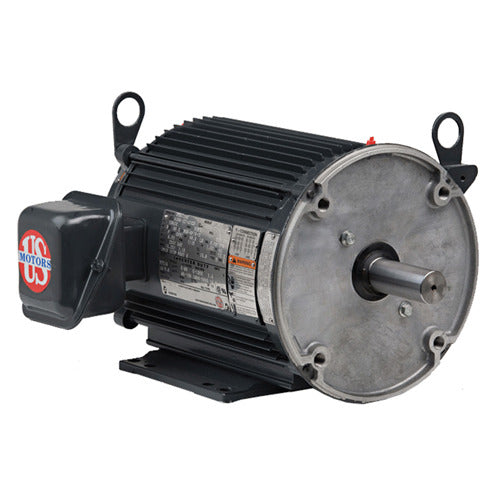

U.S. Motors UN2T2GC Inverter Vector Duty Three Phase TENV Horizontal - Footed Motor

Product Description

The U.S. Motors UN2T2GC is an inverter vector duty three-phase motor designed for reliable performance in various applications. This motor features a TENV enclosure, ensuring protection against environmental factors. It operates at two horsepower and reaches a maximum speed of one thousand eight hundred RPM. Its horizontal footed mount allows for easy installation and stability.

• Power: Two horsepower
• Speed: One thousand eight hundred RPM
• Voltage Rating: Five hundred seventy-five volts

Product Highlights

This motor is suitable for continuous duty applications and features a durable construction with a TENV design for enhanced reliability.

Product Information

Standard Information

• Category: AC Motors
• Product Name: Inverter Vector Duty Motor

Technical Specifications

• Voltage Rating: Five hundred seventy-five volts
• Full Load Efficiency: Eighty-six point five percent
• Motor Application: Vector Duty, Inverter Vector Duty
• Insulation: Class F
• Drive End Bearing: 6208-2Z-J/C3
• Mounting: Horizontal Footed
• Frequency: Sixty Hertz
• Open End Bearing: 6205-2Z-J/C3
• Frame: 145TC
• C Dimension: Fifteen and one-half inches
• Duty Type: Continuous Duty
• Enclosure Type: TENV - Totally Enclosed Non-Ventilated
• Phase: Three Phase
• Service Factor: One
• Full Load Amps: Two point two
