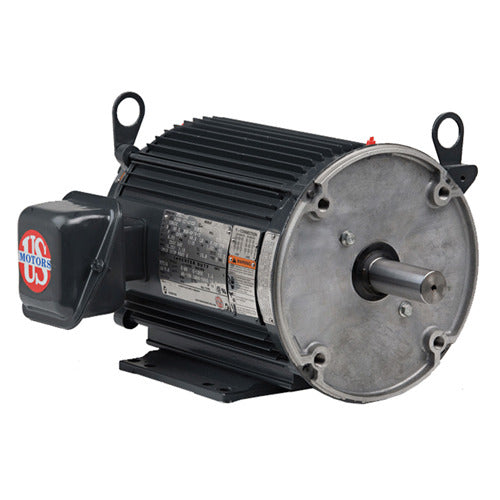

U.S. Motors UN1T2BC | Inverter Vector Duty Three Phase TENV Horizontal - Footed Motor

Product Description

The U.S. Motors UN1T2BC is a three-phase, inverter vector duty motor designed for efficiency and durability. This model features a horizontal footed mount and operates at a power rating of one horsepower. It is suitable for various industrial and commercial applications needing a reliable motor. The motor runs at a speed of 1800 rpm and is built within the TENV (totally enclosed non-ventilated) enclosure, providing a robust solution for demanding environments.

• 1 horsepower with 1800 rpm speed
• Designed for three-phase applications
• TENV enclosure for protection against dust and moisture

Product Highlights

The UN1T2BC motor is ideal for continuous duty applications. Its versatile voltage rating of 230/460 means it can be used in various settings. The motor also features a full-load efficiency of 84%, helping to reduce energy consumption.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: UN1T2BC

Technical Specifications

• Power Rating: 1 hp
• Speed: 1800 rpm
• Phase: Three Phase
• Efficiency: 84%
• Voltage Rating: 230/460
• Enclosure Type: TENV
• Frame Size: 143TC
• Full Load Amps: 3.2/1.6
• Mounting Type: Horizontal - Footed
