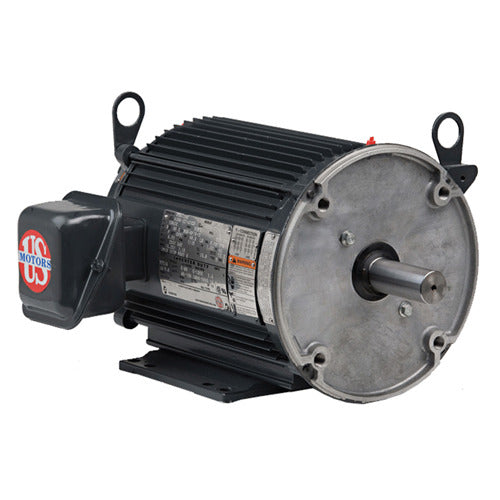

U.S. Motors UN12T2BC Inverter Vector Duty Three Phase TENV Horizontal - Footed Motor

Product Description

The U.S. Motors UN12T2BC is a 1/2 horsepower inverter vector duty three phase TENV horizontal footed motor. This motor is designed for various applications that require consistent and reliable performance. The typical rotation speed is 1800 RPM, making it suitable for industrial and commercial uses.

• Power: 1/2 HP
• Voltage Rating: 230/460
• Design Enclosure: Totally Enclosed Non-Ventilated (TENV)

Product Highlights

This motor is ideal for applications where space is limited due to its footed design. The TENV enclosure provides protection against dust and moisture, making it suitable for tough environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: UN12T2BC

Technical Specifications

• Insulation: F
• Full Load Efficiency: 84%
• Service Factor: 1
• Frame: 56, 56C
• Open End Bearing: 6204-2Z-J/C3
• Full Load Amps: 1.5/0.8
• Mounting: Horizontal - Footed
• Enclosure Designation: TENV - Totally Enclosed Non-Ventilated
• Duty: Continuous Duty
• Poles: 4
• Full Load RPM: 1750
• Phase: Three Phase
• Weight: 19.0 lb
