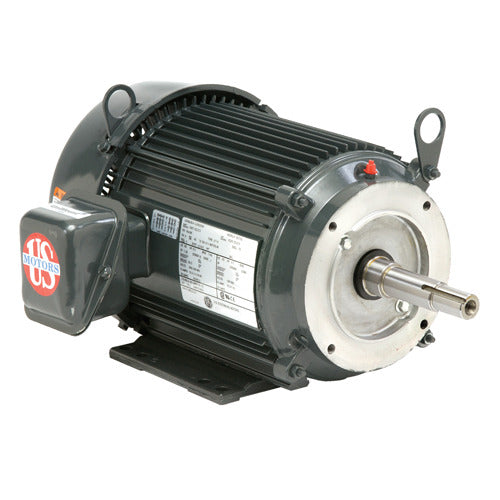

U.S. Motors UJ7P2DP Close Coupled Pump Motor Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors UJ7P2DP is a close coupled pump motor designed for efficient operation in various pumping applications. This three-phase motor features a TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and protection against external elements. It delivers a power rating of seven and one-half horsepower with a rotation speed of one thousand eight hundred RPM.

• Three-phase operation for optimal performance
• TEFC enclosure for protection in harsh environments
• Designed for continuous duty applications

Product Highlights

This motor is built for pump applications and is compatible with various systems. The horizontal foot-mounted design allows for easy installation in tight spaces. It operates on a voltage rating of 208 to 230/460 and is ideal for commercial and industrial settings.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: UJ7P2DP

Technical Specifications

• Full Load Amps: 20-18.2/9.1
• Insulation: F
• Voltage Rating: 208-230/460 & 190/380
• Full Load Efficiency: 91.7%
• Hz: 50/60
• Service Factor: 1.25
• Mounting: Horizontal - Footed
• Phase: Three Phase
• Frame: 213JP
• Full Load RPM: 1800
• Motor Application: Pump Motor
• Enclosure: TEFC
• Poles: 4
• Weight: 105 LB
• C Dimension: 23.7 in
• EAN or UPC: 786382114398
