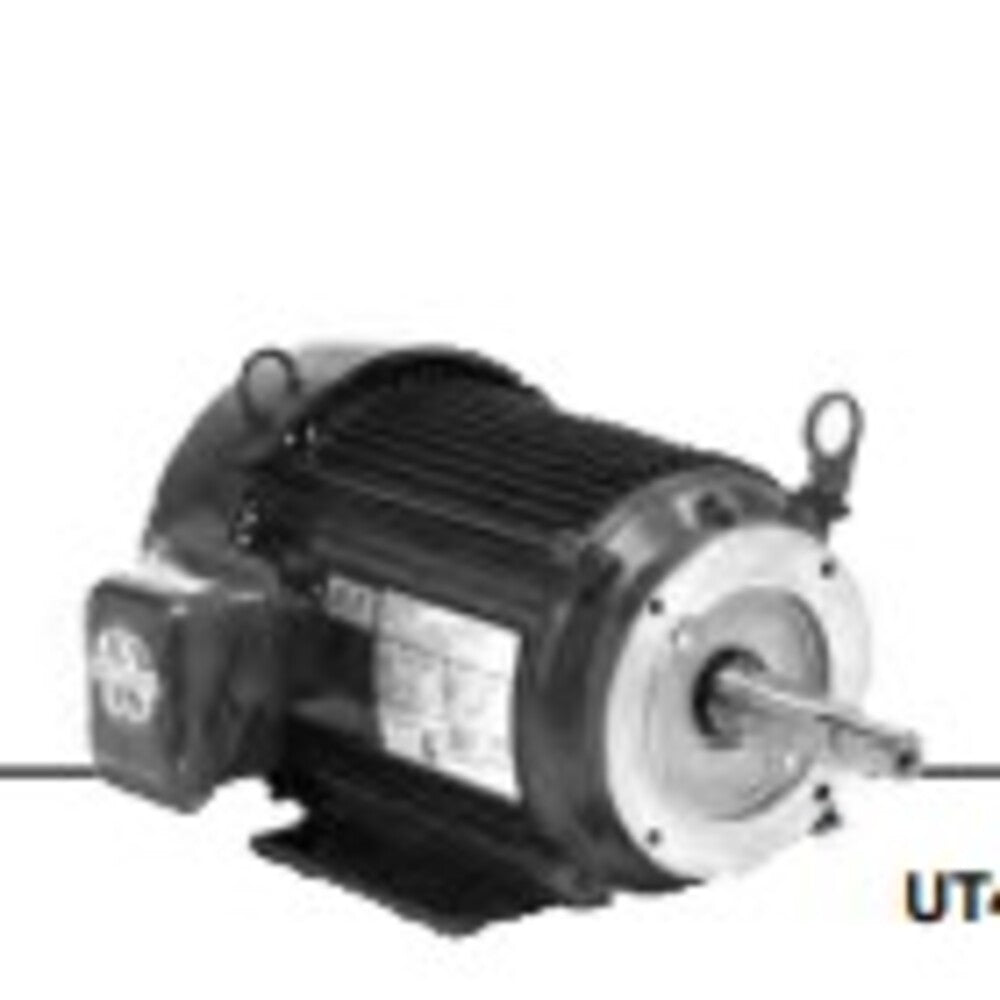

U.S. Motors UJ3P2DP Close Coupled Pump Motor Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors UJ3P2DP is a three-phase close coupled pump motor. It features a totally enclosed fan cooled (TEFC) design. This motor has a power rating of three horsepower and operates at eighteen hundred revolutions per minute (rpm). With a voltage range of two hundred eight to four hundred sixty volts, this motor is suitable for various pump applications.

• Three-phase operation
• TEFC enclosure
• Rated for continuous duty

Product Highlights

This motor is designed for pump applications and ensures high efficiency and durability.

Product Information

Standard Information

• Brand: U.S. Motors
• Power: 3 hp

Technical Specifications

• Phase: Three Phase
• Frequency: 50/60 Hz
• Service Factor: 1.25
• Mounting: Horizontal - Footed
• Poles: 4
• Voltage Rating: 208-230/460 & 190/380
• Insulation Class: F
• Full Load Efficiency: 89.5%
• C Dimension: 20.8 inches
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Full Load RPM: 1455 and 1765 RPM
• Motor Application: Pump Motor
• Full Load Amps: 8.4-7.8/3.9
• Frame Size: 182JP
• Weight: 60.0 lb
• UPC: 786382114343
