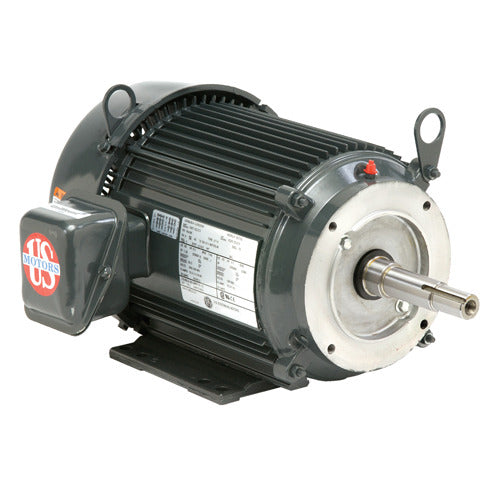

U.S. Motors UJ3P1DP Close Coupled Pump Motor Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors UJ3P1DP is a close coupled pump motor designed for three-phase applications. This motor operates at three horsepower and has a rotational speed of three thousand six hundred RPM. It is suitable for both 50 and 60 Hz frequency, with voltage ratings of 208-230/460 and 190/380. The motor features a horizontal footed mount with a TEFC (Totally Enclosed Fan Cooled) enclosure. The 182JP frame provides stability and durability for various applications.

• Powerful 3 HP performance
• Continuous duty rated
• TEFC enclosure for enhanced protection

Product Highlights

This motor is ideal for pumping applications and is built for continuous operation. The efficient design ensures effective performance across a range of conditions.

Product Information

Standard Information

• Manufacturer: U.S. Motors
• Model Number: UJ3P1DP

Technical Specifications

• Service Factor: 1.25
• Full Load Efficiency: 87.5%
• Duty: Continuous Duty
• Enclosure: TEFC
• Phase: Three Phase
• RPM: 3600
• C Dimension: 20.8 in
• Frame: 182JP
• Full Load Amps: 8.4-7.8/3.9
• Weight: 60.0 LB
• Voltage Rating: 208-230/460 & 190/380
• Mounting: Horizontal - Footed
