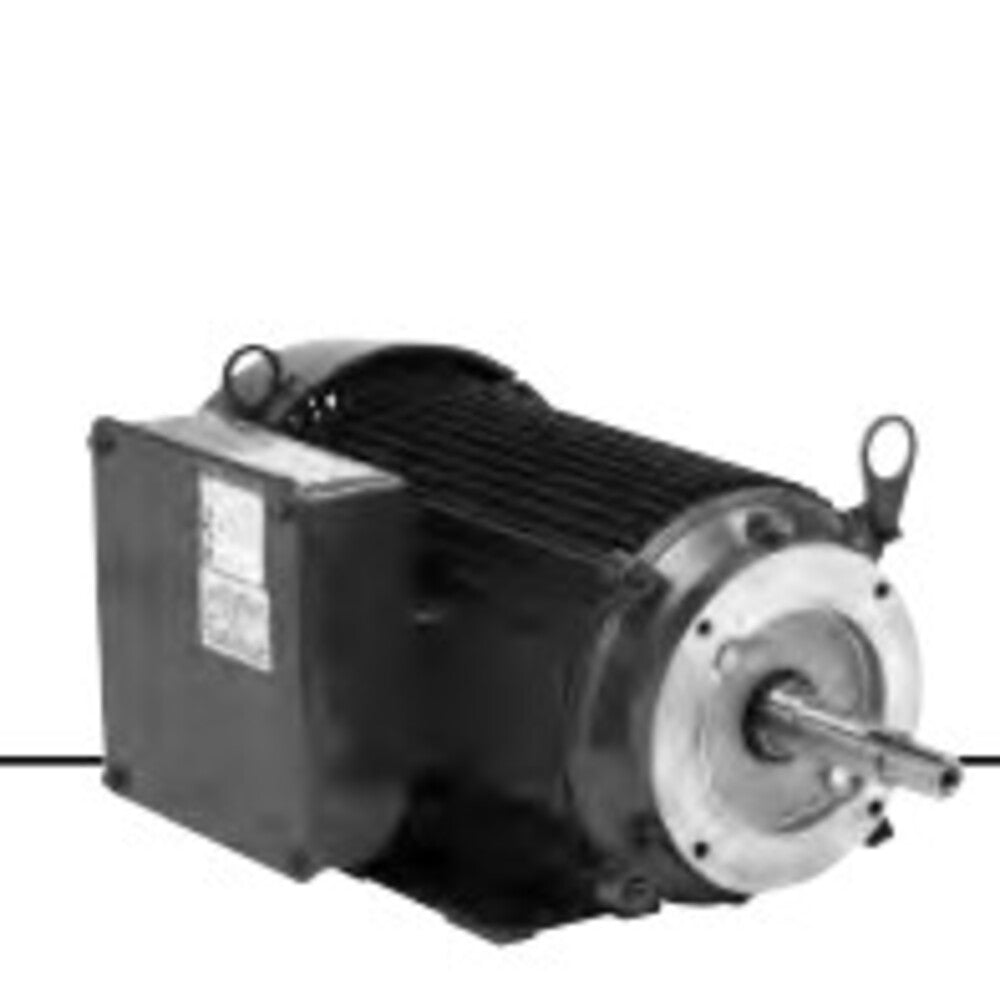

U.S. Motors UJ3C2P18M Close Coupled Pump Motor Single Phase TE Motor

Product Description

The U.S. Motors UJ3C2P18M is a close coupled pump motor designed for various pump motor applications. This single-phase motor operates at three horsepower and comes with a totally enclosed design for durability and protection in harsh environments.

• Three horsepower for effective pump operation
• Totally enclosed (TE) construction
• Rated at 1800 RPM, ideal for efficient performance

Product Highlights

This motor is ideal for applications requiring reliable performance and efficiency in continuous duty cycles, making it suitable for various AC motor applications in residential and commercial environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: UJ3C2P18M

Technical Specifications

• Insulation: F
• C Dimension: 20.2 inches
• Frequency: 60 Hz
• Open End Bearing: Sleeve
• Motor Application: Pump Motor
• Horsepower: 3
• RPM: 1800
• Mounting: Horizontal Mount
• Enclosure: Totally Enclosed, TE
• Design: L
• Full Load RPM: 1740
• Full Load Amps: 30/15
• Voltage Rating: 230, 115/230, 115
• Full Load Efficiency: 79.1%
• Duty: Continuous Duty
• Poles: 4
• Service Factor: 1.15
• Enclosure Designation: TE - Totally Enclosed
• Phase: Single Phase
• Frame: 184, 184JM
• Drive End Bearing: Sleeve
• Weight: 80.0 LB
• EAN or UPC: 786382065478
