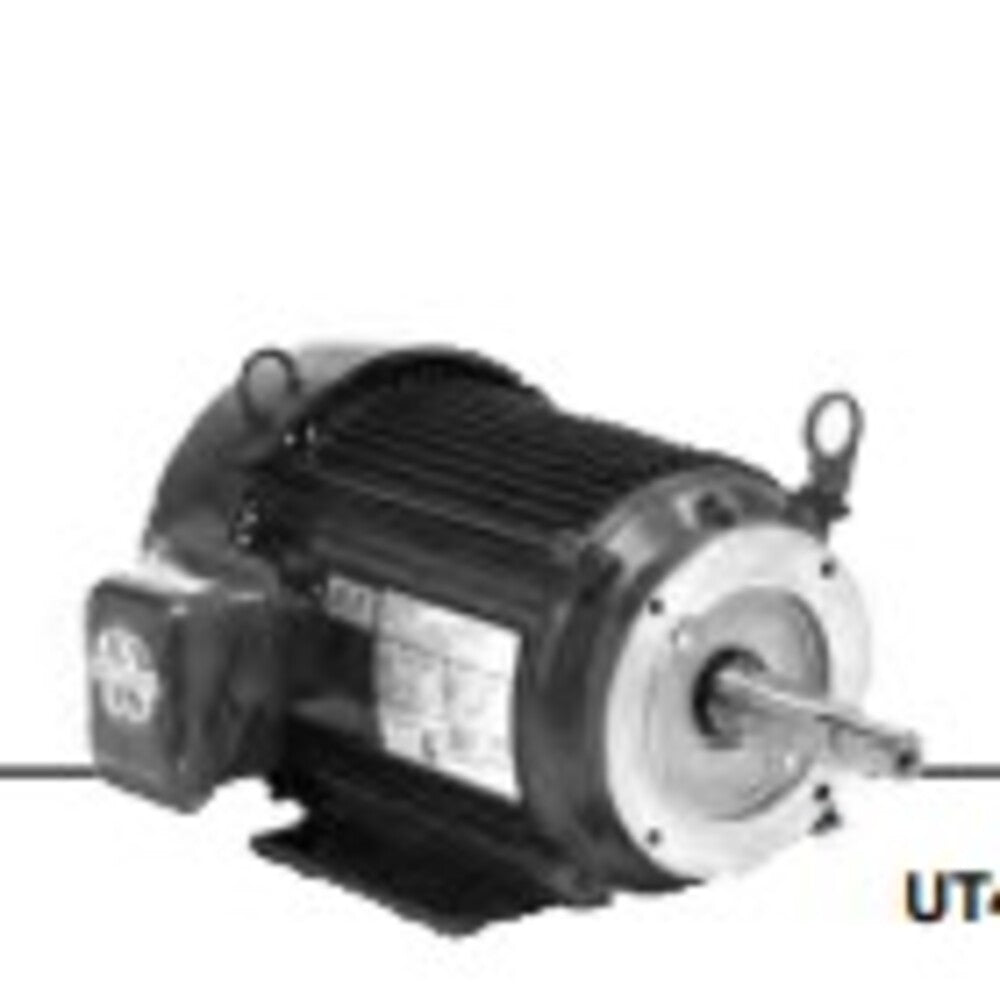

U.S. Motors UJ32P2DP Close Coupled Pump Motor Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors UJ32P2DP is a close coupled pump motor designed for efficient and reliable performance. This three-phase motor operates at one and one-half horsepower and has a speed of 1800 rpm. It features a TEFC enclosure for protection against elements, suitable for various pumping applications.

• Three-phase motor with TEFC enclosure
• Voltage rating of 208-230/460
• Horizontal footed mounting design

Product Highlights

This motor is ideal for continuous duty applications and known for its energy efficiency and durability in demanding conditions.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: UJ32P2DP

Technical Specifications

• Frame: 145JP
• Full Load Efficiency: 86.5%
• Phase: Three Phase
• Mounting: Horizontal - Footed
• C Dimension: 18.3 inches
• Full Load RPM: 1440 rpm, 1755 rpm
• Service Factor: 1.25
• Full Load Amps: 4.5-4.3/2.1
• Poles: 4
• Voltage Rating: 208-230/460 & 190/380
• Enclosure: TEFC
• Hz: 50/60 Hz
• Insulation: F
• Duty: Continuous Duty
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Motor Application: Pump Motor
• Weight: 35.0 LB
• EAN or UPC: 786382114084
