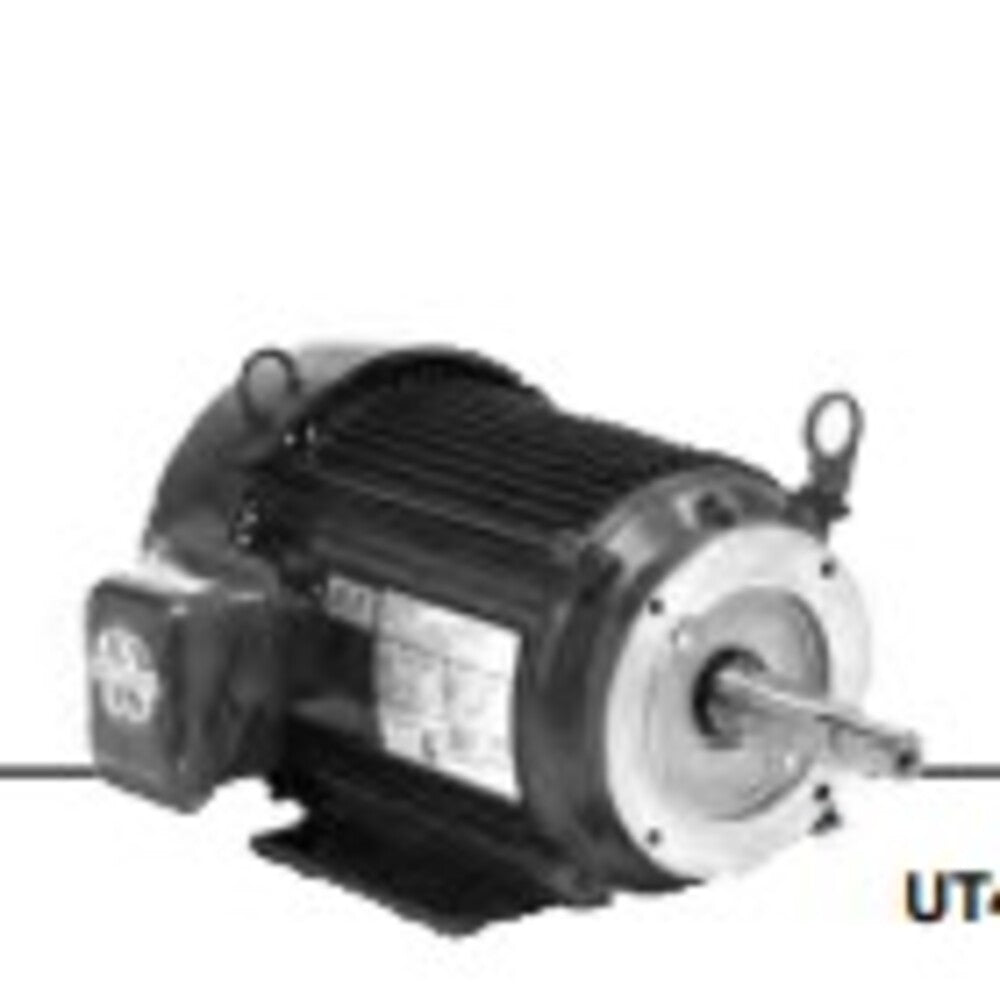

U.S. Motors UJ30P2DP Close Coupled Pump Motor Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors UJ30P2DP is a three-phase close-coupled pump motor ideal for various pump applications. It features a totally enclosed fan-cooled design and is built for continuous duty. This motor operates at thirty horsepower and a speed of one thousand eight hundred revolutions per minute.

• 30 horsepower with three-phase operation
• Voltage options of two hundred eight to two hundred thirty/ four hundred sixty
• Designed for horizontal footed mounting with TEFC enclosure

Product Highlights

This motor is suitable for a range of applications, particularly in pumping systems that demand reliability and efficiency.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: UJ30P2DP

Technical Specifications

• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• C Dimension: 32 inches
• Frame Size: 286JP
• Phase: Three Phase
• Service Factor: 1.25
• Motor Application: Pump Motor
• RPM: 1800 rpm
• Full Load Amps: 78-70/35
• Hz: 50/60 Hz
• Full Load Efficiency: 93.6%
• Duty: Continuous Duty
• Voltage Rating: 208-230/460 & 190/380
• Mounting: Horizontal - Footed
• Insulation: F
• Poles: 4
• Weight: 300 LB
• EAN/UPC: 786382114282
