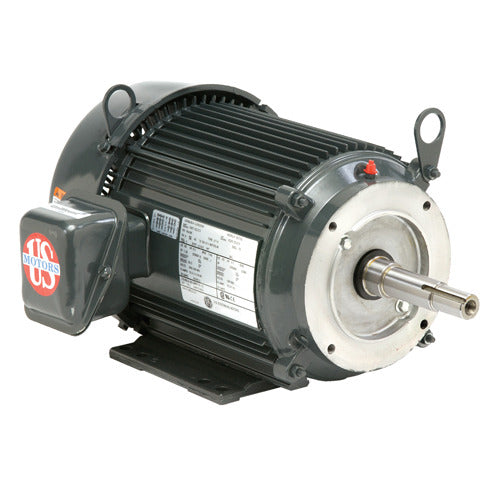

U.S. Motors UJ20P1DP Close Coupled Pump Motor Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors UJ20P1DP is a close coupled pump motor designed for three-phase applications. At 20 horsepower and a speed of 3600 rpm, this motor is built for efficient performance. It features a totally enclosed fan-cooled (TEFC) design, making it suitable for various environments, ensuring durability against dust and moisture.

• Rated for continuous duty and designed for pump motor applications.
• Mounts horizontally and has a frame size of 256JP.
• Compatible with dual voltage ratings of 208-230/460 and 190/380.

Product Highlights

This motor is engineered to deliver reliable service in demanding conditions with a service factor of 1.25. Its insulation class is F, ensuring it can operate safely at high temperatures.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: UJ20P1DP

Technical Specifications

• Phase: Three Phase
• Frame: 256JP
• Voltage Rating: 208-230/460 & 190/380
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Full Load RPM: 3600 RPM
• Full Load Amps: 51-46/23
• Poles: 2
• Full Load Efficiency: 91.7%
