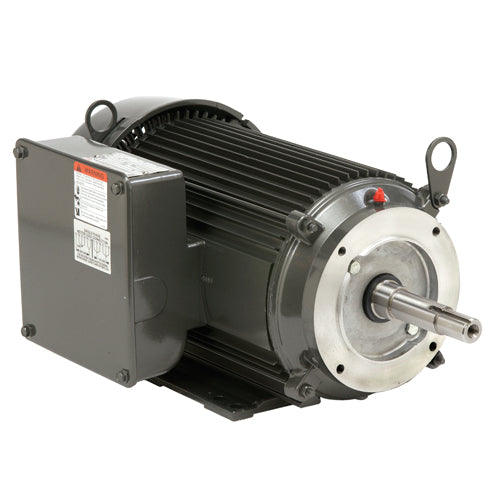

U.S. Motors UJ1P1BM Close Coupled Pump Motor Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors UJ1P1BM is a close coupled pump motor featuring a three-phase design. This motor is suitable for various applications where efficiency and reliability are essential. It operates at one horsepower and reaches a speed of three thousand six hundred revolutions per minute. The motor is designed for horizontal footed mounting, making it easy to install in different environments.

• Three-phase motor with one horsepower
• TEFC (Totally Enclosed Fan Cooled) enclosure
• Voltage rating of 230/460 volts

Product Highlights

This motor is ideal for pump applications and ensures continuous operation. It is built with a 143JM frame and meets the electrical standards necessary for optimal performance.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: UJ1P1BM

Technical Specifications

• Enclosure: TEFC
• Insulation: F
• Efficiency: 81.5%
• Full Load Amps: 2.7/1.4
• Voltage Rating: 230/460
• Frame Size: 143JM
• Poles: 2
• Duty: Continuous Duty
• Weight: 30.0 LB
• EAN or UPC: 786382106096
