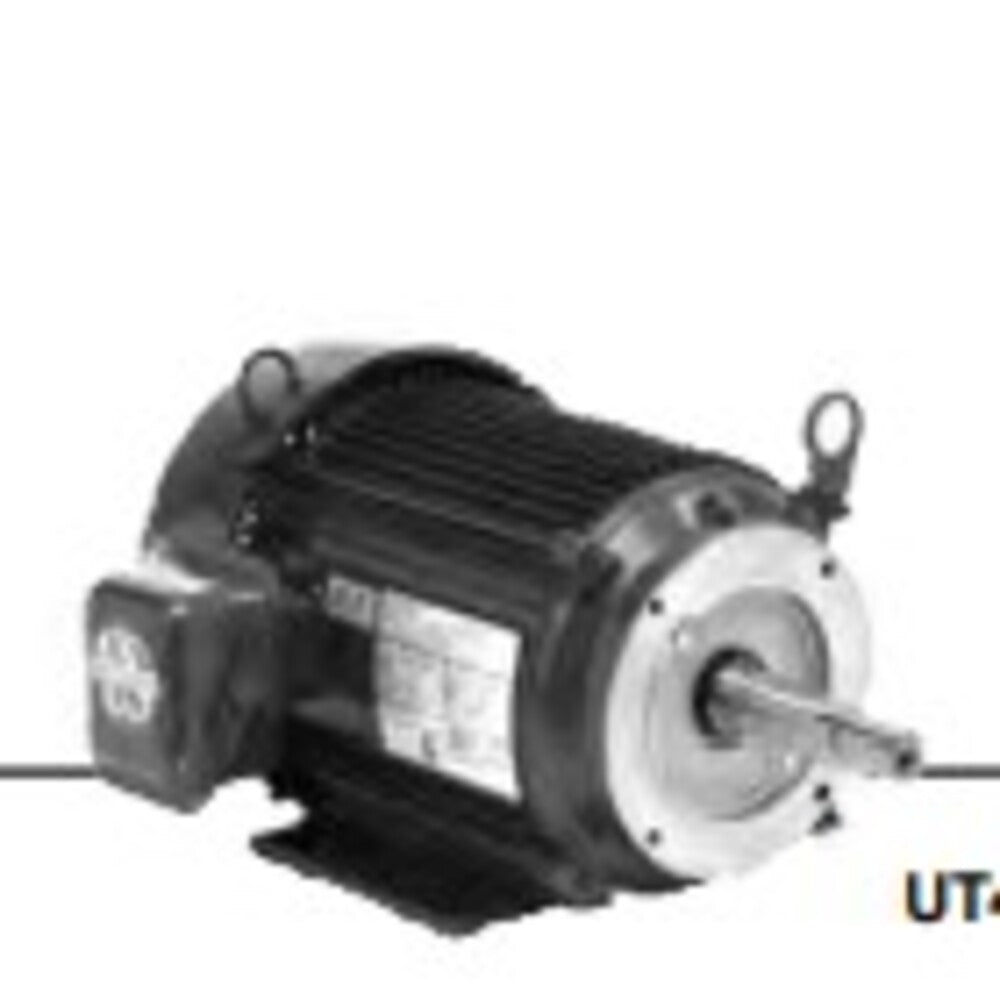

U.S. Motors UJ15P2DM Close Coupled Pump Motor Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors UJ15P2DM is an efficient close coupled pump motor designed for three-phase applications. This motor operates at a power rating of fifteen horsepower and a speed of eighteen hundred revolutions per minute (rpm). It is suitable for industrial and commercial pump systems.

• Powerful 15 hp motor
• TEFC enclosure for protection
• Designed for horizontal foot mounting

Product Highlights

This motor features a robust design ideal for pump applications, ensuring effective operation in various environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: UJ15P2DM

Technical Specifications

• Frame: 254JM
• Poles: 4
• C Dimension: 25.3 inches
• Full Load RPM: 1465 RPM, 1775 RPM
• Speed: 1800 RPM
• Mounting: Horizontal - Footed
• Enclosure: TEFC
• Full Load Efficiency: 92.4%
• Service Factor: 1.25
• Insulation: F
• Voltage Rating: 208-230/460 & 190/380
• Motor Application: Pump Motor
• Duty: Continuous Duty
• Frequency: 50/60 Hz
• Full Load Amps: 40-37/18.4
• Phase: Three Phase
• Weight: 180.0 LB
• EAN or UPC: 786382114138
