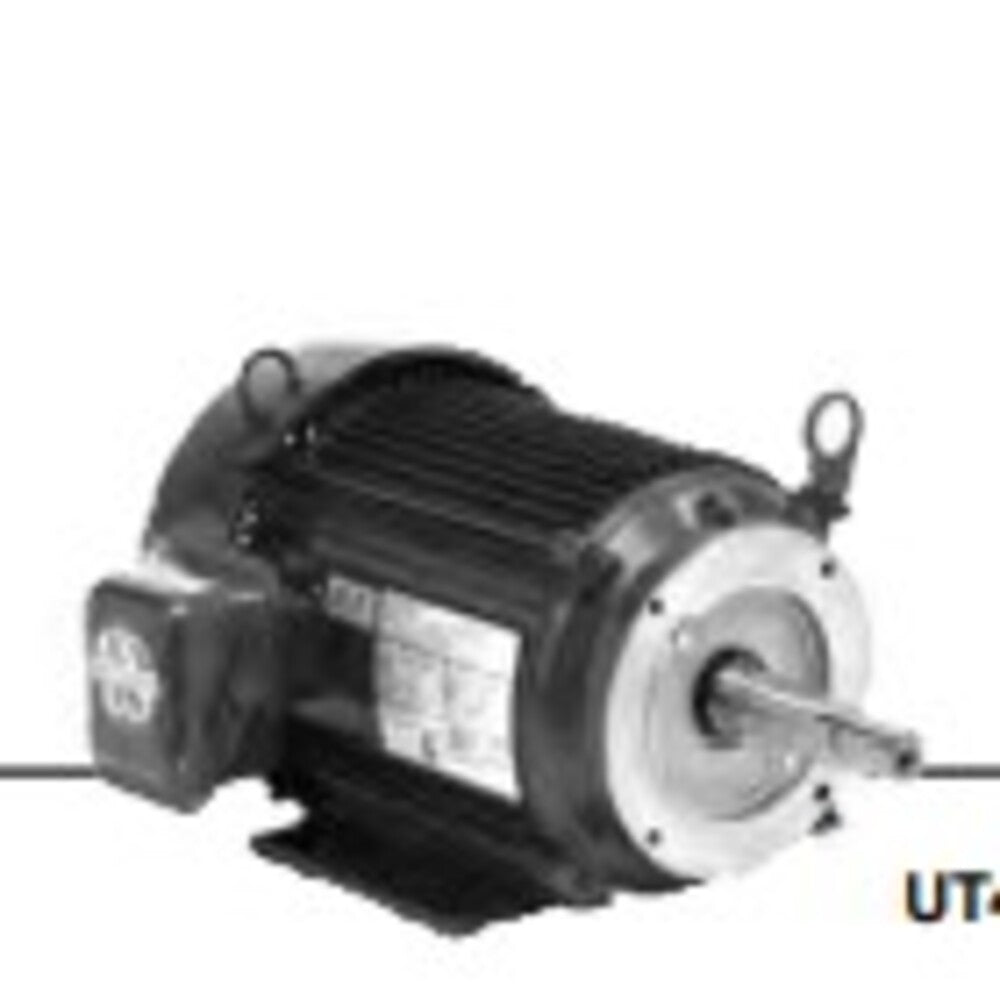

U.S. Motors UJ15P1GFM Close Coupled Pump Motor Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors UJ15P1GFM is a close coupled pump motor designed for reliable performance in various pump applications. This three-phase motor operates at a power rating of fifteen horsepower and a speed of three thousand six hundred revolutions per minute (rpm). It is built to withstand demanding environments with its Totally Enclosed Fan Cooled (TEFC) design.

• 15 horsepower
• Three-phase operation
• TEFC enclosure

Product Highlights

This durable motor is suitable for applications that require high efficiency and continuous duty operation. The UJ15P1GFM is ideal for pump systems requiring reliable and efficient performance.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: UJ15P1GFM

Technical Specifications

• Phase: Three Phase
• Poles: 2
• Full Load Efficiency: 91.7%
• Full Load RPM: 3600 rpm
• Motor Application: Pump Motor
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Frame: 215JM
• Voltage Rating: 575
• Mounting: Horizontal - Footed
• Insulation: F
• Hz: 60 Hz
• Service Factor: 1.25
• Duty: Continuous Duty
• C Dimension: 21.3 inches
• Full Load Amps: 14.4
• Weight: 120.0 LB
• EAN or UPC: 786382114060
