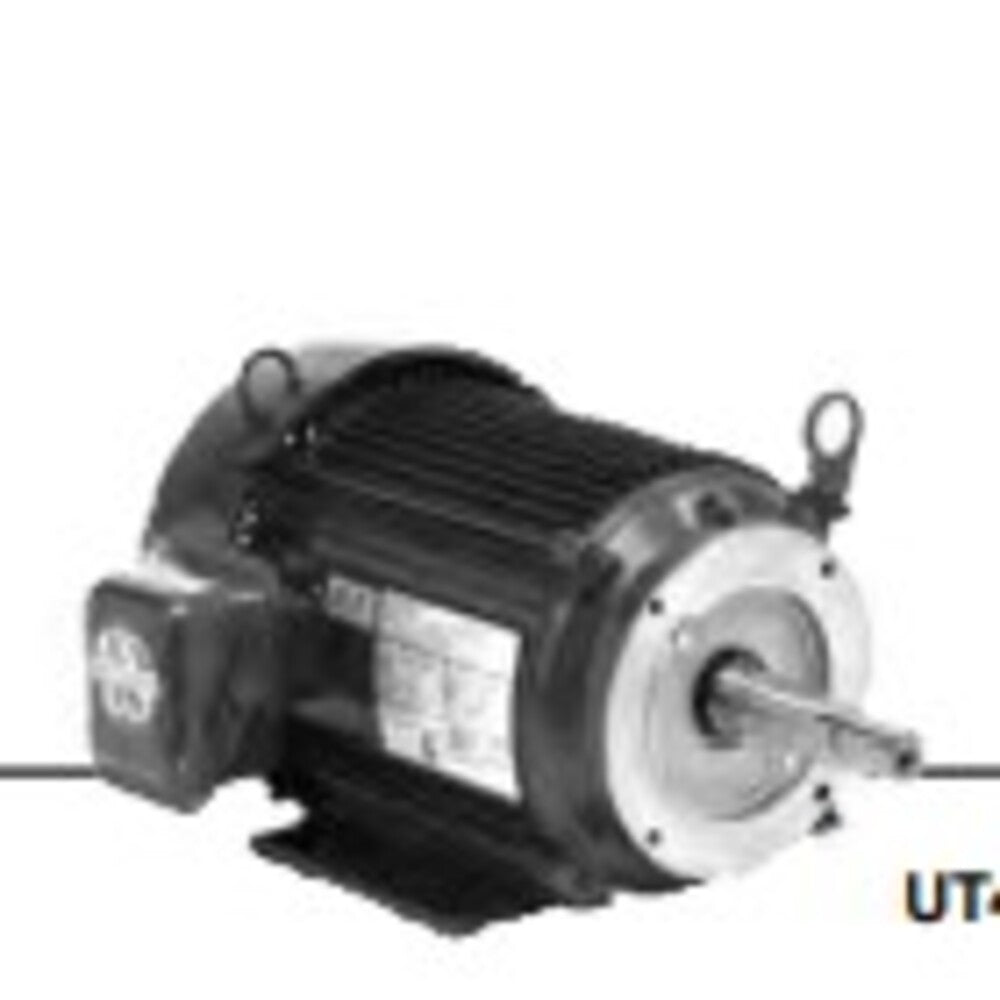

U.S. Motors UJ15P1DP Close Coupled Pump Motor Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors UJ15P1DP is a close-coupled pump motor designed for reliable operation in various pumping applications. This three-phase motor operates at fifteen horsepower and can achieve a speed of three thousand six hundred rpm. It is equipped with a TEFC enclosure, providing protection from dirt and moisture. The motor features a horizontal footed mount for easy installation.

• Three-phase operation
• TEFC enclosure for durability
• Designed for pumping applications

Product Highlights

This motor is ideal for continuous-duty operations, featuring efficient performance with a full-load efficiency of ninety-one percent. Its construction includes a sturdy aluminum frame with ball bearings for smooth operation.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: UJ15P1DP

Technical Specifications

• Voltage Rating: 208-230/460 & 190/380
• Frame: 254JP
• Full Load Amps: 39-35/17.7
• Mounting: Horizontal - Footed
• Enclosure: TEFC
• Weight: 180.0 LB
• Full Load Efficiency: 91%
• Service Factor: 1.25
