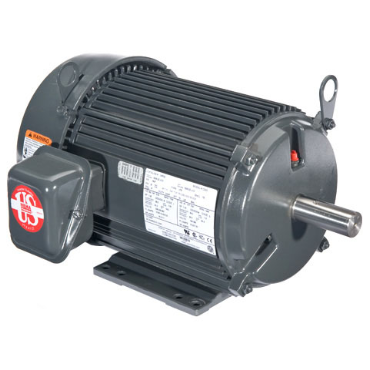

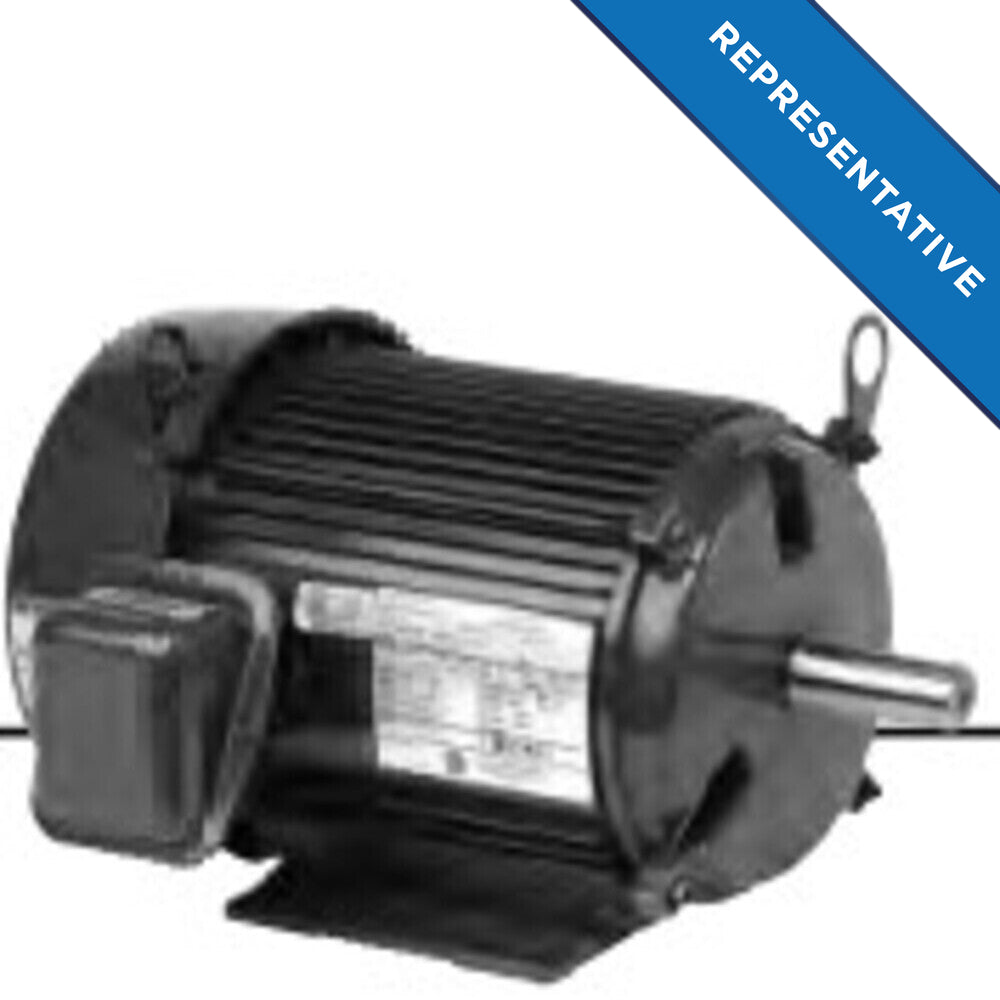

U.S. Motors U7P3D General Purpose Three Phase TEFC, Unimount NEMA Premium Efficient - IE3 Motor
U.S. Motors U7P3D General Purpose Three Phase TEFC, Unimount NEMA Premium Efficient - IE3 Motor

U.S. Motors U7P3D General Purpose Three Phase TEFC, Unimount NEMA Premium Efficient - IE3 Motor

Brand: US MOTORS
SKU: U7P3D
Availability: Out Of Stock
$1,702.28
$1,702.28
LTL Delivery

This product weighs 180 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The U.S. Motors U7P3D is a general purpose three phase motor designed for efficiency and durability. With a horsepower rating of seven and a half, it operates at one thousand two hundred RPM. The motor is suitable for various industrial applications including fans, compressors, and pumps.

  • Sealed bearings and double shielded designs for reliable performance
  • Dual voltage capability for flexible installation options
  • TEFC construction for enhanced protection and longevity

Product Highlights

Built for continuous duty, this motor meets NEMA standards for performance and efficiency.

Product Information

Standard Information

  • Brand: U.S. Motors
  • MPN: U7P3D

Technical Specifications

  • HP: 7 1/2
  • Frame: 254T
  • Full Load RPM: 1,200 RPM
  • Voltage Rating: 208-230/460
  • Duty: Continuous Duty
  • Phase: Three Phase
  • Enclosure: TEFC
  • Full Load Efficiency: 91%
  • Weight: 180 LB
  • Mounting: Horizontal - Footed
