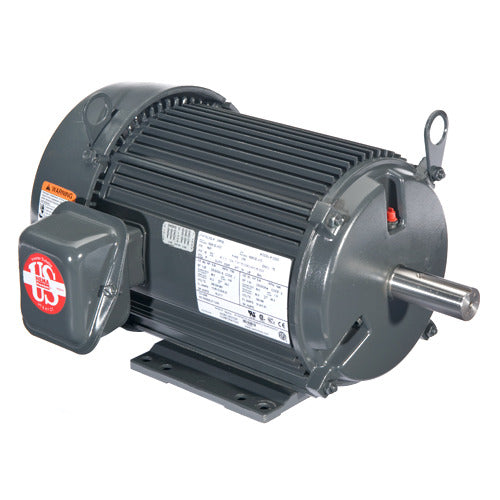

U.S. Motors U5P4D General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U5P4D is a general-purpose three-phase motor. Designed for horizontal footed mounting, it features a totally enclosed fan-cooled (TEFC) enclosure that ensures durability and efficiency in various industrial applications. This motor operates at five horsepower and has a speed of nine hundred RPM, making it suitable for tasks like driving fans, compressors, and pumps.

• 3 Phase Power for Versatile Industrial Use
• TEFC Enclosure for Enhanced Protection
• Voltage Rating: 208-230/460 & 190/380

Product Highlights

With a continuous duty rating and a high efficiency of eighty-six point five percent, the U5P4D is built for reliability and long-term operation.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: U5P4D

Technical Specifications

• Insulation Class: F
• Frame Size: 254T
• Poles: 8
• Full Load Amps: 15.9-14.8/7.4
• Full Load Efficiency: 86.5%
• Weight: 180.0 LB
• Mounting: Horizontal - Footed
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
