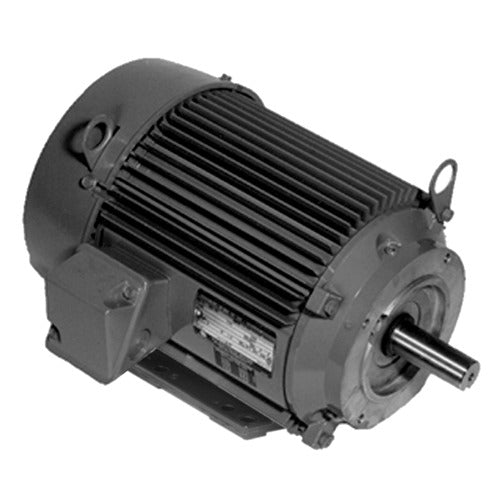

U.S. Motors U5P3DC General Purpose Three Phase TEFC Unimount NEMA Premium Efficient - IE3 C-Face Footed Motor

Product Description

The U.S. Motors U5P3DC is a general purpose three phase motor designed for a variety of applications. This model features a TEFC enclosure, making it suitable for use in damp or dusty environments. The motor provides 5 horsepower and operates at a speed of 1200 rpm. Dual voltage ratings allow for flexibility in installation.

• 5 hp power with a speed of 1200 rpm
• Suitable for horizontal footed mounting
• Class F insulation for improved durability

Product Highlights

This motor is ideal for industrial applications such as pumps, compressors, and fans.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U5P3DC

Technical Specifications

• Frame Material: Aluminum
• Hz: 50/60 Hz
• Motor Application: General Purpose
• RPM: 1200 rpm
• Full Load Amps: 15-14/7
• Duty: Continuous Duty
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Voltage Rating: 208-230/460 & 190/380
• Insulation: F
• Service Factor: 1.25
• Weight: 135.0 LB
• Frame: 215TC
• Poles: 6
