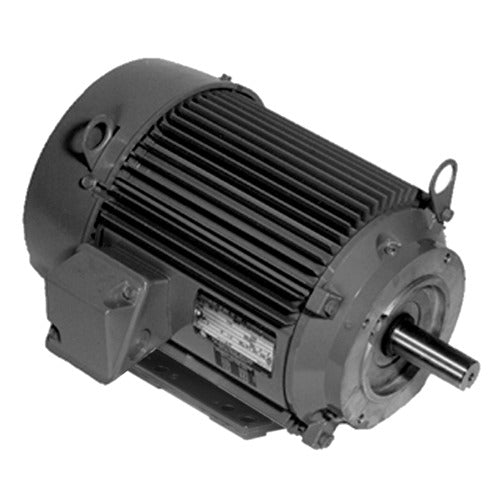

U.S. Motors U5P2DK General Purpose Three Phase, TEFC Unimount NEMA Premium Efficient - IE3, C-Face Footed Motor

Product Description

The U.S. Motors U5P2DK is a General Purpose Three Phase motor designed to provide reliable performance in various applications. This motor has a 5 horsepower rating and operates at 1800 rpm. It features a TEFC enclosure and is suitable for both 50 and 60 Hz operations.

• 5 HP, 1800 RPM, Three Phase
• TEFC Enclosure Design for Protection
• Voltage Rating: 208-230/460 & 190/380

Product Highlights

This motor is ideal for use in pumps, fans, compressors, and other general-purpose applications, especially in environments that may be damp or dusty.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U5P2DK

Technical Specifications

• Phase: Three Phase
• Voltage Rating: 208-230/460 & 190/380
• Motor Application: General Purpose
• Poles: 4
• Enclosure: TEFC
• Insulation: F
• Full Load Amps: 13.6-12.3/6.2
• Hz: 50/60 Hz
• Service Factor: 1.25
• Mounting: Horizontal - Footed
• RPM: 1,800 rpm
• Frame Material: Aluminum
• Weight: 80.0 LB
• Frame: 184TCH
