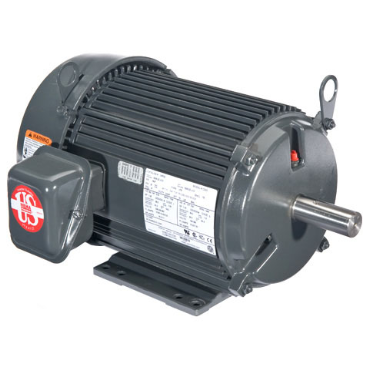

U.S. Motors U5P1D General Purpose Three Phase TEFC, Unimount NEMA Premium Efficient - IE3 Motor

Product Description

The U.S. Motors U5P1D is a general-purpose three-phase TEFC motor designed for various applications. It operates at five horsepower, with two speed ratings of three thousand five hundred twenty RPM and two thousand eight hundred ninety RPM. This motor is suitable for standard industrial use and offers an efficient performance powered by a voltage rating of two hundred eight to two hundred thirty or four hundred sixty volts.

• Durable aluminum frame for long-lasting service
• TEFC enclosure protects the motor in harsh conditions
• Rated for continuous duty with premium efficiency

Product Highlights

This motor features premium efficiency and is ideal for powering equipment, including fans, blowers, and pumps.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U5P1D

Technical Specifications

• Frame Material: Aluminum
• Voltage Rating: 208-230/460 & 190/380
• Service Factor: 1.15
• Efficiency Group: Premium Efficient
• Duty: Continuous Duty
• Phase: Three Phase
• Frame: 184T
• Mounting: Horizontal - Footed
• Poles: 2
• RPM: 3,600
• Motor Application: General Purpose
• Full Load Efficiency: 88.5%
• C Dimension: 16.8 inches
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Weight: 75.0 LB
• EAN or UPC: 786382044978
