US MOTORS U3P3DCR GENERAL PURPOSE MOTORS
US MOTORS U3P3DCR GENERAL PURPOSE MOTORS

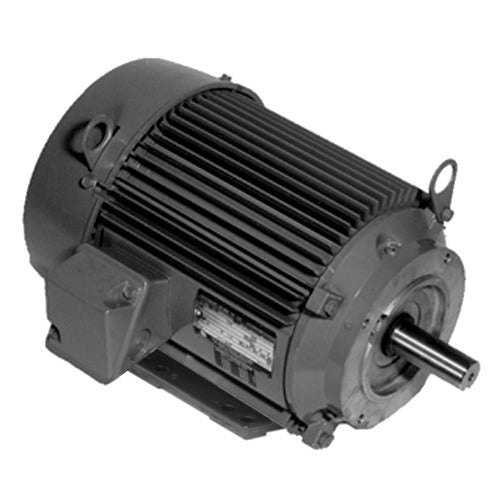

U.S. Motors U3P3DCR General Purpose Three Phase TEFC C-Face Footless Motor

US MOTORS
Brand: US MOTORS
SKU: U3P3DCR
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$1,012.45
$1,012.45
LTL Delivery

This product weighs 105 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The U.S. Motors U3P3DCR is a general-purpose three-phase motor designed for various applications. This motor is suitable for use in fans, pumps, compressors, and material handling equipment.

  • 3 horsepower output
  • 1200 rpm speed
  • TEFC enclosure

Product Highlights

The motor operates efficiently in damp and dusty environments, featuring a horizontal footless mount. It supports dual voltage ratings, making it versatile for different applications.

Product Information

Standard Information

  • Brand: U.S. Motors
  • MPN: U3P3DCR

Technical Specifications

  • Power: 3 HP
  • Speed: 1200 rpm
  • Voltage Rating: 208-230/460 volts
  • Frame: 213TC
  • Phase: Three Phase
  • Frequency: 50/60 Hz
  • Service Factor: 1.15
  • Full Load Amps: 9.3-8.6/4.3
  • Enclosure: TEFC - Totally Enclosed Fan Cooled
  • Weight: 105 pounds
