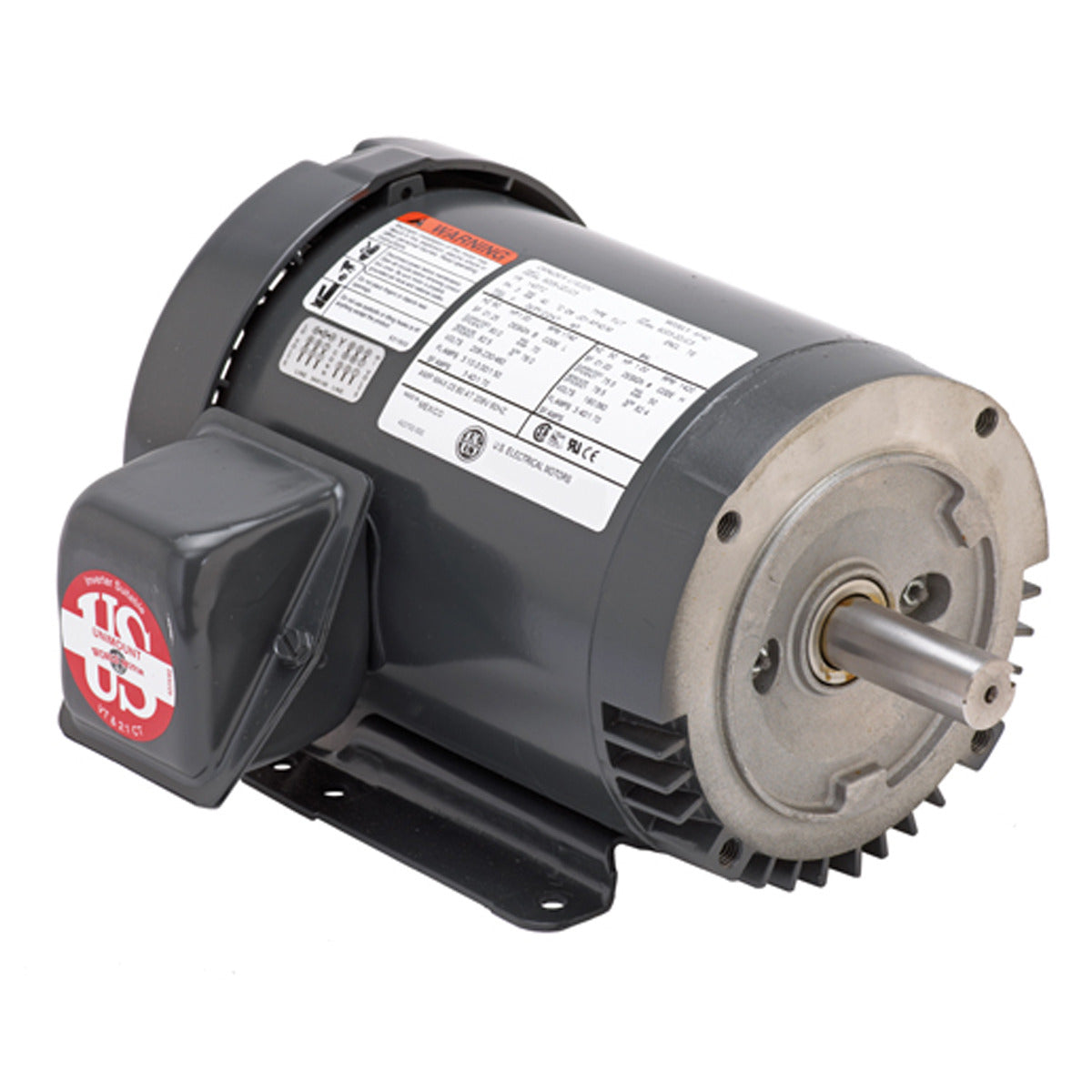

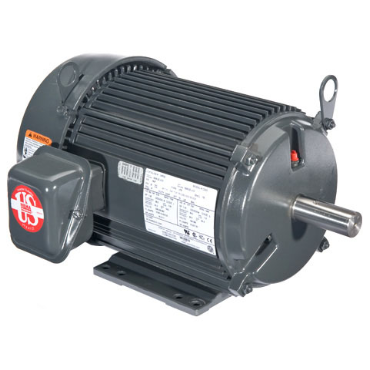

U.S. Motors U3P3D General Purpose Three Phase TEFC, Unimount NEMA Premium Efficient - IE3 Motor

Product Description

The U.S. Motors U3P3D is a general purpose three phase TEFC motor designed for various industrial applications. This motor operates at three horsepower and is rated for both 50 and 60 Hz frequencies. It features a horizontal footed mounting design which enables easy installation in a range of environments.

• Three phase operation
• Premium efficiency ratings
• TEFC enclosure for reliable performance

Product Highlights

Designed for continuous duty, this motor is ideal for use in fans, blowers, compressors, and pumps. It offers dual voltage ratings of 208-230/460 for improved flexibility in installation and operation. The motor is constructed with robust materials to ensure a long service life, even in demanding conditions.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U3P3D

Technical Specifications

• Power: 3 HP
• RPM: 1200 rpm
• Voltage: 208-230/460
• Efficiency Group: Premium Efficient
• Frame Size: 213T
• Weight: 114.89 LB
• Full Load Amps: 9.3-8.6/4.3
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
