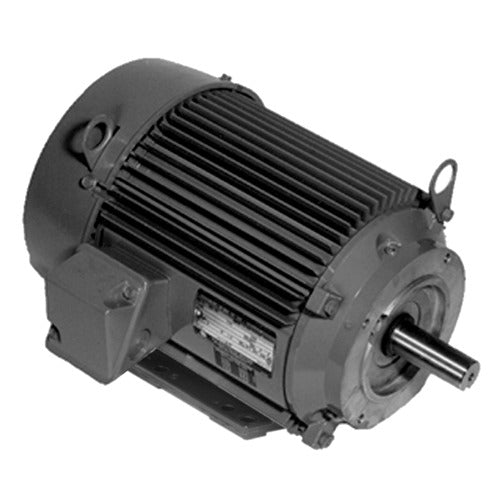

U.S. Motors U3P2DK General Purpose Three Phase, TEFC Unimount NEMA Premium Efficient - IE3 C-Face Footed Motor

Product Description

The U.S. Motors U3P2DK is a general purpose three phase motor designed for various industrial applications. The motor features a NEMA Premium Efficient design with a rated power of three horsepower and operates at 1800 rpm.

• Three Phase operation
• TEFC Enclosure for durability
• Suitable for multiple voltage ratings

Product Highlights

This motor is ideal for use in pumps, fans, compressors, and material handling equipment. Its robust construction ensures reliable operation in damp or dusty environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U3P2DK

Technical Specifications

• Motor Application: General Purpose
• HP: 3
• Frame Material: Aluminum
• RPM: 1800
• Hz: 50/60
• Voltage Rating: 208-230/460 & 190/380
• Full Load Amps: 8.4-7.8/3.9
• Service Factor: 1.25
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Frame: 182TCH
• Mounting: Horizontal - Footed
• Weight: 60.0
• Full Load Efficiency: 89.5%
