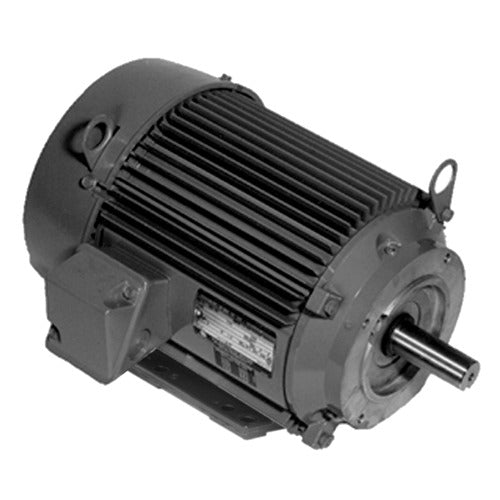

U.S. Motors U3P1DCR General Purpose Three Phase TEFC Horizontal - Footless Motor

Product Description

The U.S. Motors U3P1DCR is a general purpose three phase TEFC horizontal footless motor designed for various industrial applications. It has a power rating of three horsepower and operates at a constant speed of three thousand six hundred RPMs.

• Ideal for general industrial equipment, fans, blowers, and compressors.
• Voltage rated at two hundred eight to two hundred thirty/ four hundred sixty and one hundred ninety to three hundred eighty.
• Continuous duty rated with a service factor of 1.25.

Product Highlights

This motor features a robust TEFC enclosure suitable for challenging environments. Its design allows for efficient power transmission while minimizing maintenance.

Product Information

Standard Information

• Brand: U.S. Motors
• Available To Order: Yes

Technical Specifications

• MPN: U3P1DCR
• Voltage Rating: 208-230/460 & 190/380
• Duty: Continuous Duty
• Frame: 182TC
• Full Load Efficiency: 87.5%
• Weight: 60 LB
• C Dimension: 16.1 in
• Poles: 2
• Insulation: F
• Full Load Amps: 8.4-7.8/3.9
