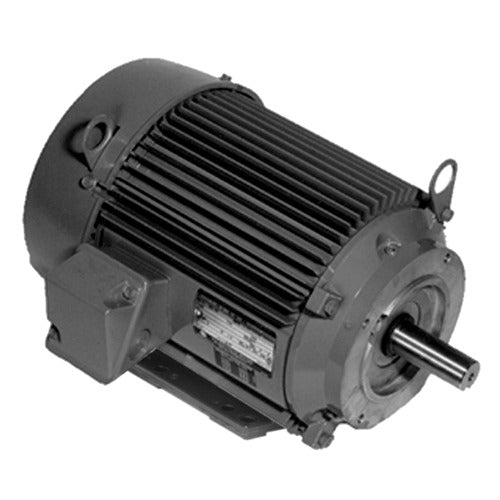

U.S. Motors U3P1DC General Purpose Three Phase, TEFC Unimount NEMA Premium Efficient - IE3 C-Face Footed Motor

Product Description

The U.S. Motors U3P1DC is a general purpose motor designed for three phase applications. It features a TEFC enclosure, making it suitable for use in industrial environments. This motor operates efficiently at three horsepower and offers a high speed of three thousand six hundred RPM.

• Efficient dual voltage ratings
• TEFC enclosure protects against dust and moisture
• Designed for continuous duty applications

Product Highlights

Ideal for use in pumps, fans, and compressors, this motor is built to withstand damp and dirty conditions while providing reliable performance.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U3P1DC

Technical Specifications

• Frame: 182TC
• Phase: Three Phase
• Enclosure: TEFC
• Full Load Efficiency: 87.5%
• Frame Material: Aluminum
• Duty: Continuous Duty
• RPM: 3600
• Voltage Rating: 208-230/460 & 190/380
• Hz: 50/60
• Full Load RPM: 3540
• Insulation: F
• Full Load Amps: 8.4-7.8/3.9
• C Dimension: 16.1 in
• Service Factor: 1.25
• Mounting: Horizontal - Footed
• Motor Application: General Purpose
• HP: 3
• Poles: 2
• Weight: 50.0 LB
• EAN or UPC: 786382093679
