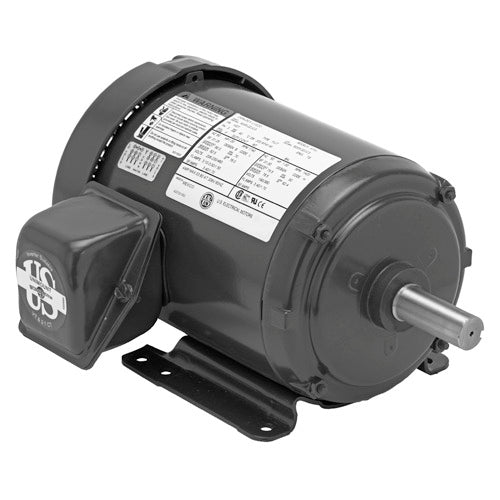

U.S. Motors U3P1AHZ General Purpose Three Phase TEFC Rigid Base Motor

Product Description

The U.S. Motors U3P1AHZ is a general purpose three phase motor designed for various industrial applications. This motor operates at three horsepower and a speed of three thousand six hundred RPM. It is suitable for use in equipment such as fans, blowers, pumps, and compressors.

• Voltage Rating: Two hundred eight to two hundred thirty or four hundred sixty volts
• Mounting Type: Rigid base
• Enclosure Design: Totally enclosed fan cooled (TEFC)

Product Highlights

This electric motor is designed for continuous duty and features high efficiency for energy conservation. The rigid base mount allows for stable installation, and its robust build ensures reliability in various operational environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U3P1AHZ

Technical Specifications

• Voltage Rating: 208-230/460
• Full Load Efficiency: 86.5%
• Full Load Amps: 7.9-6.7/3.4
• Full Load RPM: 3600
• Insulation: Class F
• Enclosure: TEFC
• Frame Size: 56HZ
• Weight: 40.0 lbs
