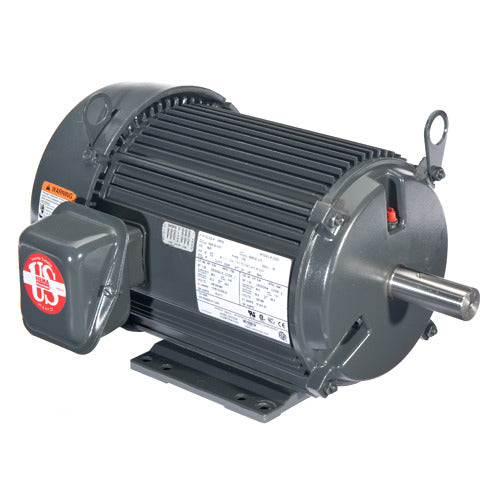

U.S. Motors U3L9C General Purpose Three Phase TE Horizontal - Footed Motor

Product Description

The U.S. Motors U3L9C is a general-purpose three-phase TE horizontal footed motor designed for reliable performance in various applications. This motor operates at three horsepower and features a speed rating of one thousand eight hundred to nine hundred revolutions per minute. It is suitable for continuous operation and provides efficient performance with a voltage rating of four hundred sixty volts.

• Designed for general-purpose applications.
• Features a durable aluminum frame.
• Compatible with horizontal footed mounts.

Product Highlights

This motor delivers versatility for a range of industrial and commercial purposes.

Product Information

Standard Information

• Mounting: Horizontal - Footed
• Voltage Rating: 460

Technical Specifications

• Motor Application: General Purpose, Unimount
• Full Load Amps: 4.4
• Frequency: 60 Hz
• Enclosure: Totally Enclosed, TE
• Frame Material: Aluminum
• Enclosure Designation: TE - Totally Enclosed
• Mounting Type: Horizontal Mount
• Frame: 182T
