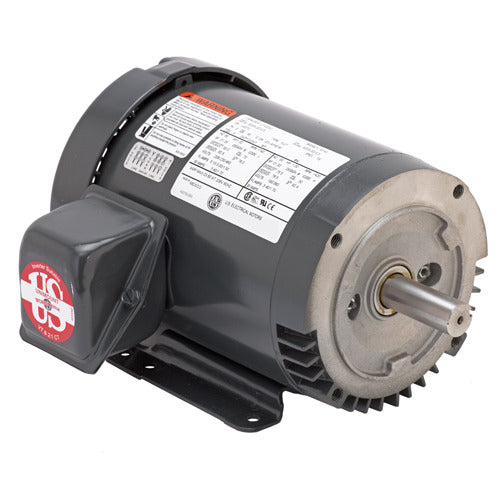

U.S. Motors U34S3DC General Purpose Three Phase, TEFC Steel Edge C-Face Footed Motor

Product Description

The U.S. Motors U34S3DC is a general purpose motor designed for reliable performance in various applications. This three-phase motor operates at three-fourths horsepower and offers a rated speed of twelve hundred revolutions per minute. The motor features a TEFC (Totally Enclosed Fan Cooled) enclosure, making it suitable for use in environments with dust and moisture.

• Rated for 208-230/460 volts
• Meets continuous duty service requirements
• Ideal for pumps, fans, compressors, and general industrial equipment

Product Highlights

This motor uses a rolled steel frame for durability and Class F insulation for heat resistance. It includes sealed bearings that enhance reliability and reduce maintenance.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U34S3DC

Technical Specifications

• Horsepower: 3/4
• RPM: 1200
• Duty Type: Continuous Duty
• Frame Size: 143TC
• Phase: Three Phase
• Voltage: 208-230/460
• Efficiency: 72%
• Weight: 35 LB
