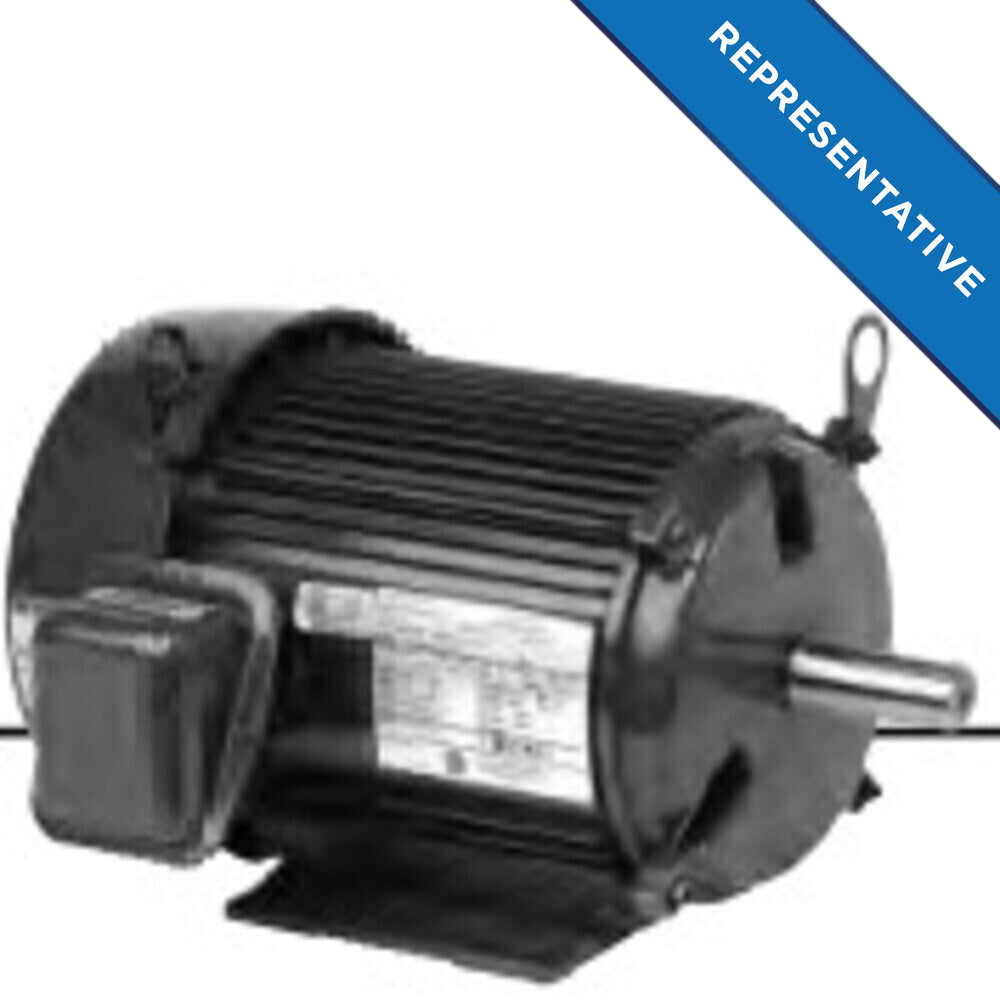

U.S. Motors U32P4D General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U32P4D is a general purpose motor designed for various industrial applications. This three-phase motor operates at 1.5 horsepower and provides a speed of 900 rpm. It is suitable for use with equipment such as fans, blowers, and pumps. The motor features a TEFC (Totally Enclosed Fan Cooled) design, ensuring durability in challenging conditions.

• Power: 1.5 hp
• Voltage: 208-230/460
• Frame: 184T

Product Highlights

This motor is effective for continuous-duty applications across a wide range of tasks. Its aluminum frame offers a lightweight yet sturdy solution, while the TEFC enclosure protects internal components from dust and moisture.

Product Information

Standard Information

• Enclosure Type: TEFC
• Application: General Purpose
• Poles: 8
• Duty Cycle: Continuous Duty

Technical Specifications

• Service Factor: 1.25
• Full Load Efficiency: 80%
• Weight: 70 lb
• Full Load Amps: 6.4-6.4/3.2
• Mounting Type: Horizontal - Footed
• Insulation Class: F
• C Dimension: 16.8 in
• Voltage Rating: 208-230/460 & 190/380
