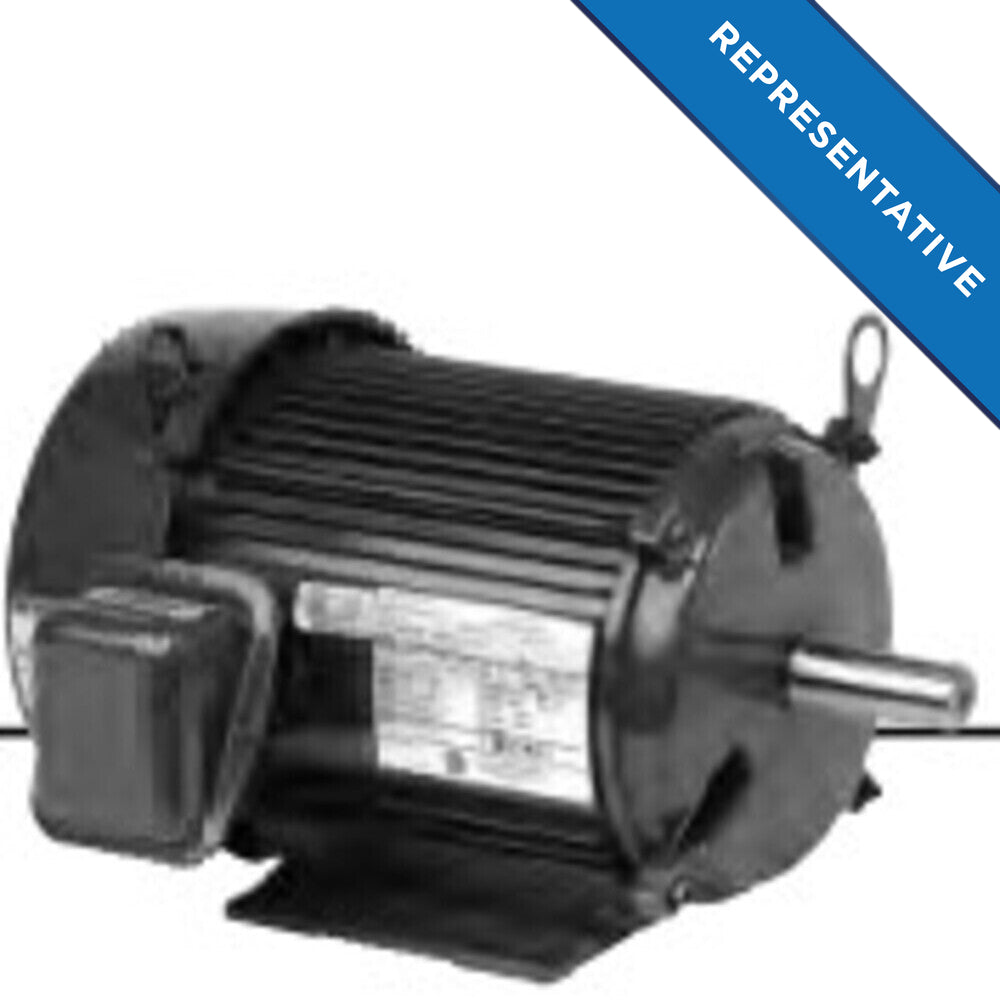

U.S. Motors U32P3H General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U32P3H is a general-purpose three-phase motor designed for reliable performance in various applications. This motor provides one and a half horsepower at a speed of twelve hundred RPM. The robust construction makes it suitable for tasks involving fans, compressors, and pumps.

• Power: 1.5 HP
• Mounting: Horizontal - Footed
• Voltage Rating: 200V

Product Highlights

This motor operates effectively with high efficiency and is ideal for continuous duty applications, which require enduring performance in demanding environments.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: U32P3H

Technical Specifications

• Full Load Amps: 5.4
• Full Load Efficiency: 87.5%
• Enclosure: TEFC
• Motor Application: General Purpose
• Mounting: Horizontal - Footed
• Frame Material: Aluminum
• Insulation: F
• Service Factor: 1.25
• Voltage Rating: 200
• Poles: 6
• Duty: Continuous Duty
• Phase: Three Phase
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• C Dimension: 16.5 inches
• Hz: 60
• Frame: 182T
• RPM: 1200
• Weight: 60.0 lbs
• EAN or UPC: 786382087814
