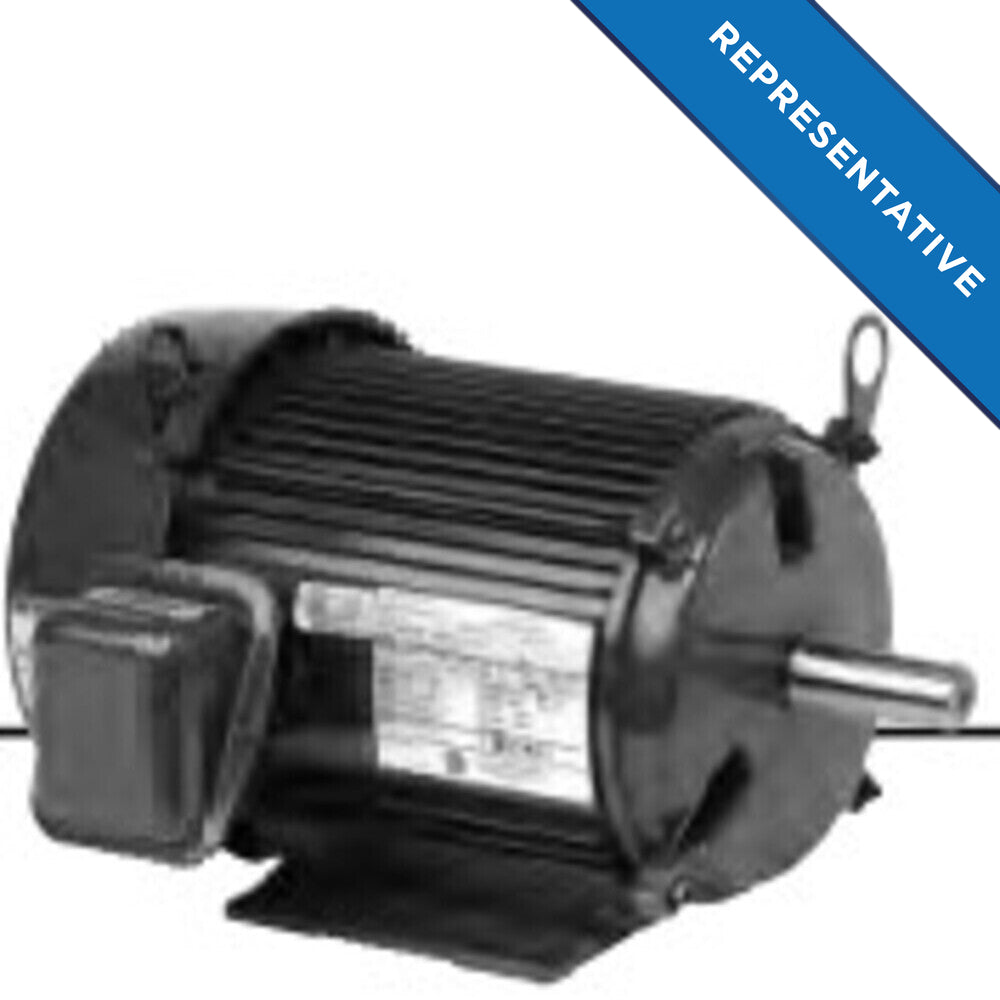

U.S. Motors U32P3G General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U32P3G is a general-purpose three-phase motor ideal for various applications. It features a TEFC design, making it suitable for use in challenging environments. This motor is capable of delivering one and a half horsepower at twelve hundred rpm, ensuring reliable performance.

• Powerful one and a half horsepower output
• TEFC enclosure protects from dust and moisture
• Designed for continuous duty applications

Product Highlights

This motor is designed for versatility and efficiency, making it suitable for fans, blowers, compressors, and pumps.

Product Information

Standard Information

• Brand: U.S. Motors
• Motor Type: General Purpose

Technical Specifications

• HP: 1 1/2
• RPM: 1200
• Phase: Three Phase
• Voltage Rating: 575
• Service Factor: 1.25
• Full Load Efficiency: 87.5%
• Frame Size: 182T
• Mounting Type: Horizontal - Footed
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Weight: 60 lb
