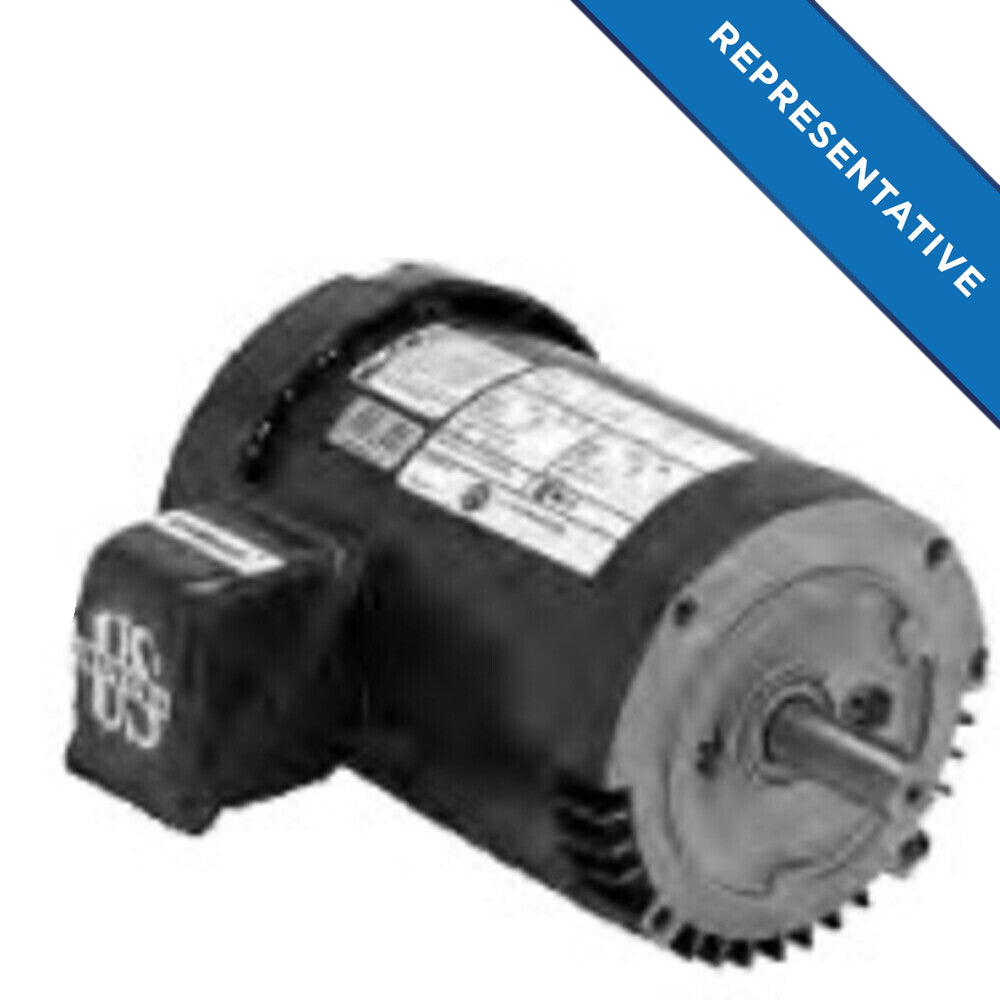

U.S. Motors U32P3DC General Purpose Three Phase TEFC Unimount NEMA Premium Efficient - IE3 C-Face Footed Motor

Product Description

The U.S. Motors U32P3DC is a general-purpose motor designed for various industrial applications. This motor features a three-phase design, making it ideal for running pumps, compressors, and fans. With a power rating of one and a half horsepower and operating at twelve hundred RPM, it is suitable for both fifty and sixty Hertz applications.

• Efficiency: 87.5 % full load efficiency
• Durable Design: TEFC enclosure protects against dust and moisture
• Versatile Applications: Great for pumps, fans, and material handling

Product Highlights

The U32P3DC motor features a robust aluminum frame and is designed for continuous duty operation. The design includes sealed bearings and a service factor of 1.25. It is rated for dual voltage operation, providing flexibility for installation.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 101507354

Technical Specifications

• Power: 1 1/2 HP
• RPM: 1200
• Voltage: 208-230/460
• Insulation Class: F
• Enclosure Type: TEFC
• Frame: 182TC
• Weight: 60.0 LB
• Full Load Amps: 4.8-4.7/2.3
• Duty Cycle: Continuous Duty
• Bearings: Sealed
