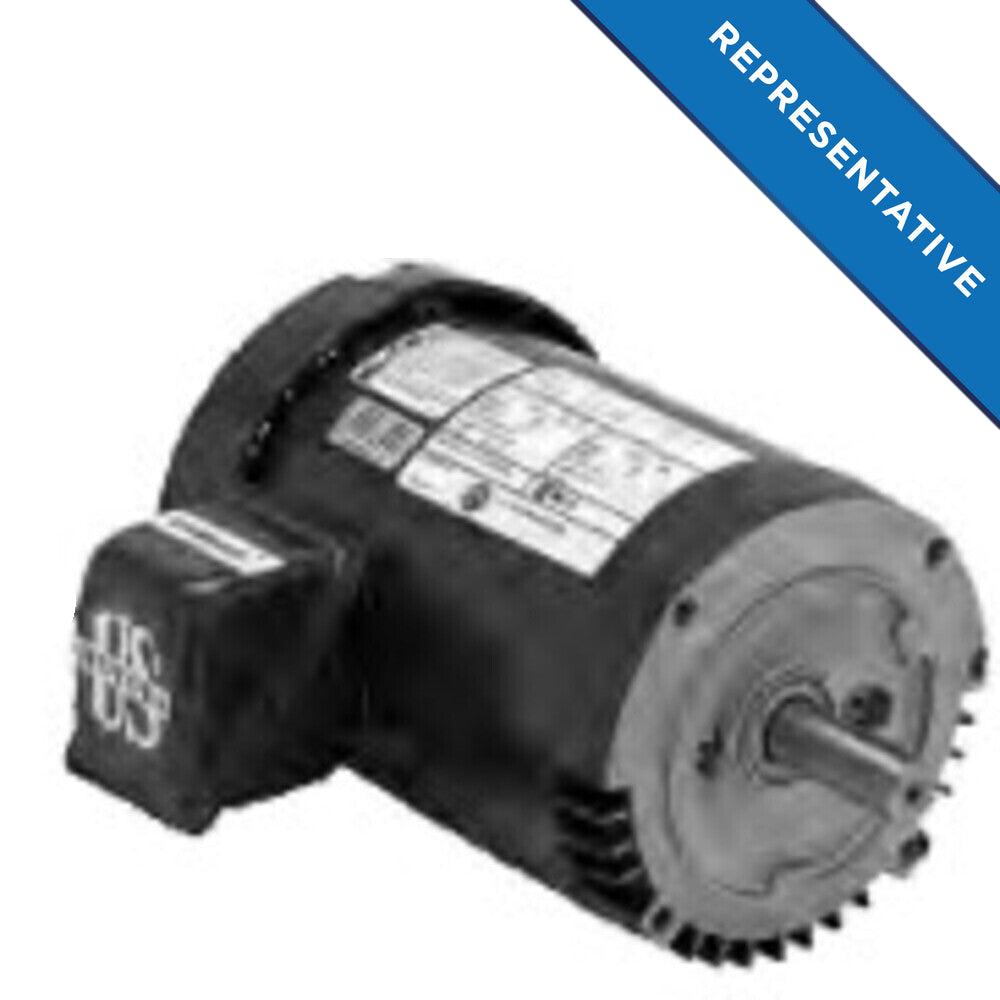

U.S. Motors U32P2HC General Purpose Three Phase, TEFC Steel Edge C-Face Footed Motor

Product Description

The U.S. Motors U32P2HC is a general purpose, three-phase motor designed for various industrial applications. This motor is built with a rolled steel frame and offers durability for heavy use. It operates effectively at one and a half horsepower and at one thousand eight hundred rpm, making it suitable for pumps, fans, and compressors.

• Power: 1.5 HP
• Voltage: 200V
• Frame Size: 145TC

Product Highlights

This motor is designed under continuous duty rating with a TEFC enclosure to protect against environmental factors. It is fitted with dual voltage ratings and sealed, double-shielded bearings, ensuring reliable operation.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U32P2HC

Technical Specifications

• Power: 1 1/2 HP
• Frequency: 60 Hz
• Full Load RPM: 1,800 RPM
• Duty Cycle: Continuous Duty
• Frame: 145TC
• Phase: Three Phase
• Poles: 4
• Full Load Amps: 4.7
• Insulation Class: F
• Efficiency: 86.5%
• Weight: 60.0 LB
