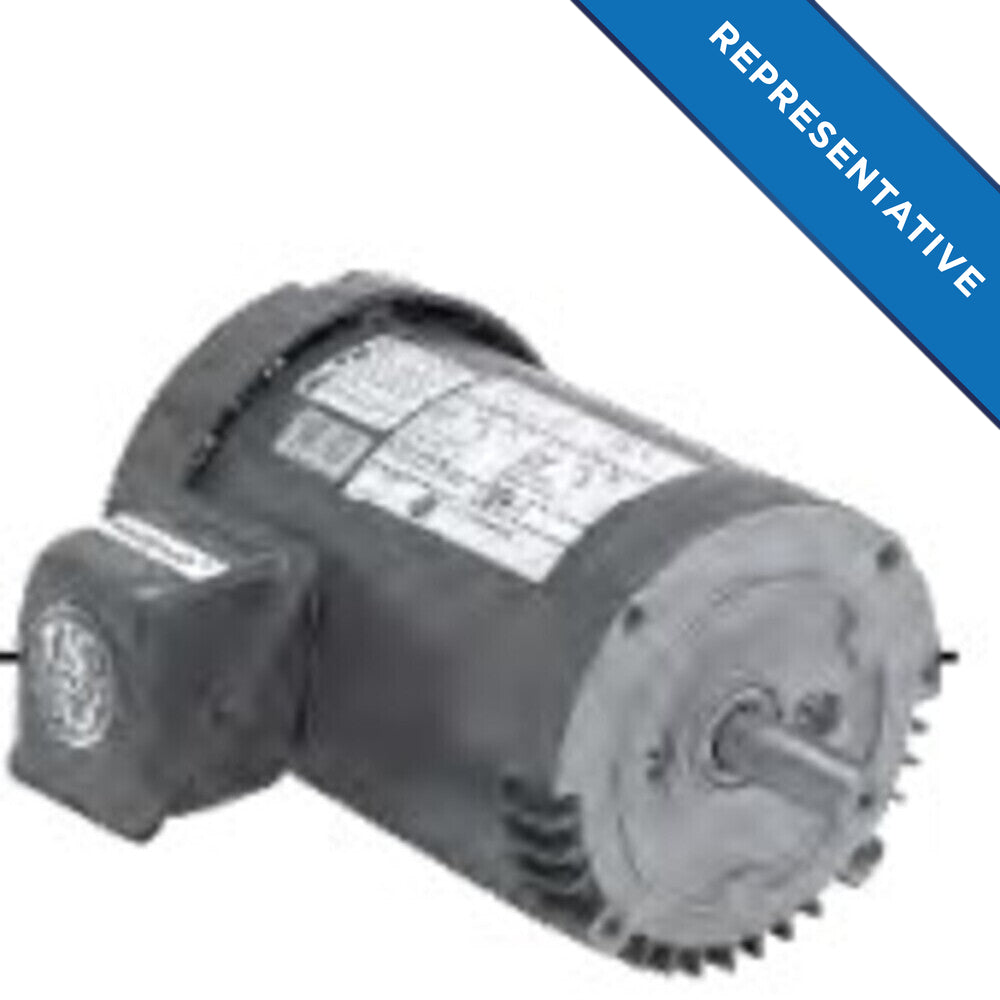

U.S. Motors U32P2H General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U32P2H is a general-purpose motor designed for efficient operation in various industrial applications. This three-phase motor offers a power output of one and a half horsepower at a speed of one thousand eight hundred RPM. It features a totally enclosed fan-cooled (TEFC) design which protects the motor from dust and moisture.

• Designed for continuous duty applications
• Horizontal footed mount for easy installation
• Voltage rating of two hundred volts

Product Highlights

The U32P2H motor is suitable for fans, blowers, compressors, and pumps. Its robust construction ensures reliability across different working environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U32P2H

Technical Specifications

• Frequency: 60 Hz
• Full Load RPM: 1745 rpm
• Duty: Continuous Duty
• Frame: 145T
• Phase: Three Phase
• Poles: 4
• Weight: 35.0 LB
• Voltage Rating: 200 V
• Full Load Amps: 4.7 A
• Service Factor: 1.25
• Frame Material: Rolled Steel
• Full Load Efficiency: 86.5%
• Mounting: Horizontal - Footed
• Insulation Class: F
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
