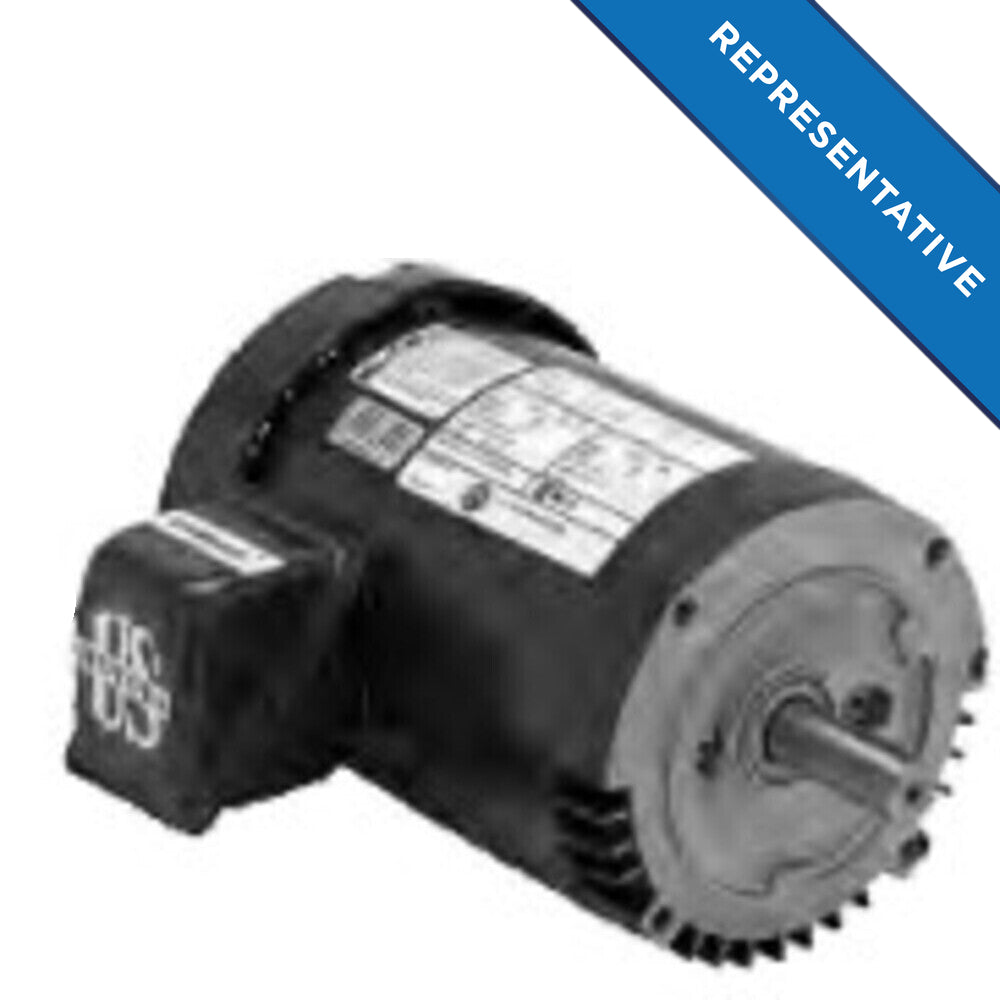

U.S. Motors U32P2GC General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U32P2GC is a General Purpose Three Phase TEFC Horizontal - Footed Motor designed for various industrial tasks. This motor operates at a power of one and one-half horsepower and reaches an operational speed of one thousand eight hundred RPM. It comes with a durable TEFC enclosure and is suitable for horizontal footed mounting.

• General Purpose Motor Application
• Operates at 575 Voltage Rating
• Continuous Duty Rated

Product Highlights

Reliable for general applications like fans and pumps, this motor is built to provide efficiency and longevity in demanding situations.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U32P2GC

Technical Specifications

• RPM: 1800
• Motor Application: General Purpose
• Hz: 60
• Voltage Rating: 575
• Full Load Efficiency: 86.5%
• Enclosure: TEFC
• Duty: Continuous Duty
• Insulation: F
• Mounting: Horizontal - Footed
• Phase: Three
• Frame: 145TC
• Weight: 35.0 LB
• Poles: 4
• Full Load Amps: 1.7
