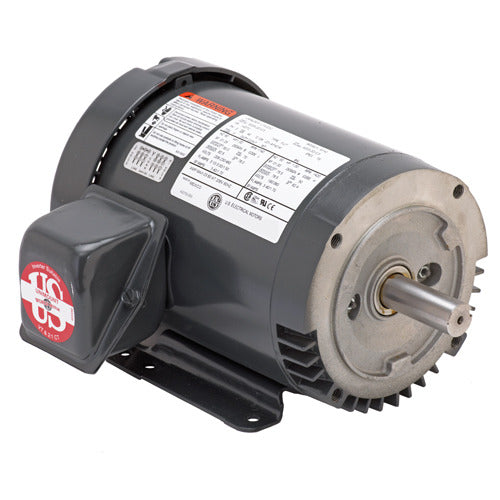

U.S. Motors U32P1HC General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U32P1HC is designed for general purpose applications. This motor operates on three phases and provides one and a half horsepower at a rated speed of three thousand six hundred revolutions per minute. The motor features a totally enclosed fan cooled enclosure, making it suitable for various industrial settings.

• 1.5 horsepower with a maximum speed of 3600 RPM
• Suitable for continuous duty applications
• Featuring a robust TEFC enclosure for added durability

Product Highlights

This motor is designed for applications including fans, blowers, and pumps. It's reliable and efficient, making it a preferred choice among professionals.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: U32P1HC

Technical Specifications

• Frame Size: 143TC
• Duty: Continuous Duty
• Full Load RPM: 3500
• C Dimension: 12.1 inches
• Voltage Rating: 200 volts
• Amperage: 4.4 amps
• Enclosure Type: TEFC
• Insulation Class: F
