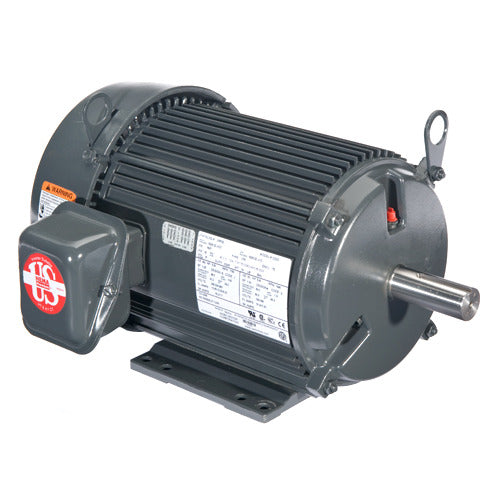

U.S. Motors U32D10C General Purpose Three Phase Horizontal - Footed Motor

US MOTORS
Brand: US MOTORS
SKU: U32D10C
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$1,513.56
$1,513.56
LTL Delivery

This product weighs 50 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The U.S. Motors U32D10C is a general purpose three phase horizontal footed motor designed for various applications. This motor offers reliable performance with a power rating of one and a half horsepower and operates at speeds of one thousand eight hundred or one thousand two hundred rpm. It is suitable for use in a range of settings, providing flexibility and utility for trade professionals.

  • Power Rating: 1.5 hp
  • Voltage: 460 V
  • Frame Material: Aluminum

Product Highlights

This motor is designed for continuous duty, making it ideal for industrial applications. Its totally enclosed design protects the internal components from external elements, enhancing durability. The U32D10C is equipped with efficient ball bearings for smooth operation and reduced maintenance.

Product Information

Standard Information

  • Model: U32D10C
  • Brand: U.S. Motors

Technical Specifications

  • Service Factor: 1.25
  • Enclosure Designation: Totally Enclosed
  • Drive End Bearing: 6206-2RS-J/C3
  • Full Load RPM: 1170 / 1770 rpm
  • Insulation Class: F
  • Poles: 4/6
  • Duty Type: Continuous Duty
  • Mounting Type: Horizontal - Footed
