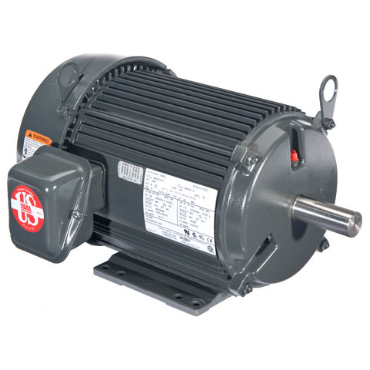

U.S. Motors U30P2H General Purpose Three Phase TEFC, Unimount NEMA Premium Efficient - IE3 Motor

Product Description

The U.S. Motors U30P2H is a general purpose three-phase motor with a TEFC enclosure. This motor operates at thirty horsepower with an operational speed of one thousand eight hundred RPM. It is designed for applications in industrial settings.

• TEFC (Totally Enclosed Fan Cooled) design
• Dual voltage ratings for flexible applications
• Continuous duty operation for reliable performance

Product Highlights

The U30P2H motor is ideal for use in fans, blowers, compressors, and pumps.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U30P2H

Technical Specifications

• Frame: 286T
• Poles: 4
• Enclosure: TEFC
• Full Load Amps: 81
• Voltage: 200
• HP: 30
• Service Factor: 1.25
• Frame Material: Aluminum
• Mounting: Horizontal - Footed
• Motor Application: General Purpose
• C Dimension: 28.3 inches
• Phase: Three Phase
• Efficiency Group: Premium Efficient
• Full Load Efficiency: 93.6 %
• Duty: Continuous Duty
• Hz: 50/60 Hz
• Weight: 325.0 lb
• EAN or UPC: 786382089313
