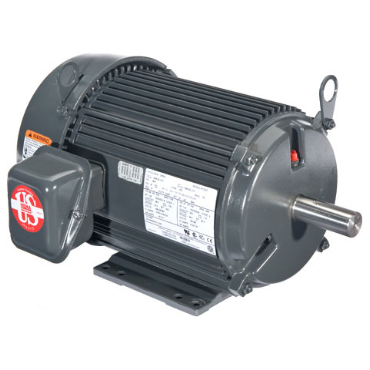

U.S. Motors U30P2DS General Purpose Three Phase TEFC, Unimount NEMA Premium Efficient - IE3 Motor

Product Description

The U.S. Motors U30P2DS is a three-phase TEFC motor designed for general purpose applications. This motor features a premium efficient design, making it suitable for a wide range of industrial uses. It operates at thirty horsepower and has a speed of one thousand eight hundred RPM.

• General purpose motor application
• Horizontal footed mount
• Premium efficient with TEFC enclosure

Product Highlights

This motor is suitable for various industrial equipment like fans, blowers, compressors, and pumps. It is designed to provide reliable performance in demanding environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U30P2DS

Technical Specifications

• Efficiency Group: Premium Efficient
• HP: 30
• RPM: 1,800
• Voltage Rating: 208-230/460
• Enclosure: TEFC
• Frame: 286TS
• Full Load Amps: 78-70/35
• Mounting: Horizontal - Footed
• Service Factor: 1.25
• Weight: 325.0 LB
