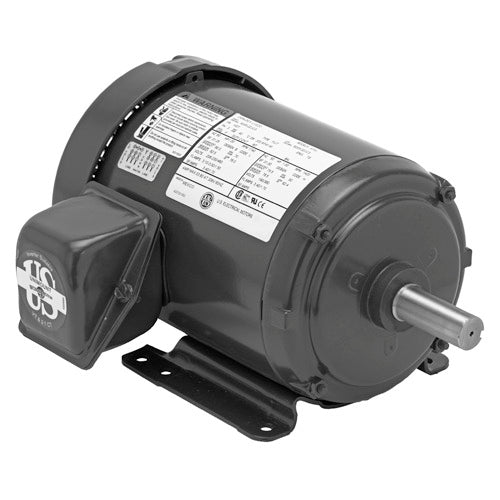

U.S. Motors U2P1H General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U2P1H is a general purpose three-phase motor designed for diverse industrial applications. This motor operates at two horsepower, with a speed of three thousand six hundred RPM. Its TEFC enclosure makes it suitable for use in various environments, providing protection against dust and moisture.

• Power: 2 HP
• Speed: 3600 RPM
• Voltage: 200

Product Highlights

This motor is ideal for applications requiring reliable performance and efficiency.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: U2P1H

Technical Specifications

• Full Load Efficiency: 86.5%
• Full Load RPM: 3505 RPM
• Poles: 2
• Voltage Rating: 200 V
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Frame: 145T
• Mounting: Horizontal - Footed
• C Dimension: 12.8 inches
• Phase: Three Phase
• Insulation: F
• Service Factor: 1.25
• Frame Material: Rolled Steel
• Duty: Continuous Duty
• Motor Application: General Purpose
• Full Load Amps: 5.6
• Weight: 40.0 LB
