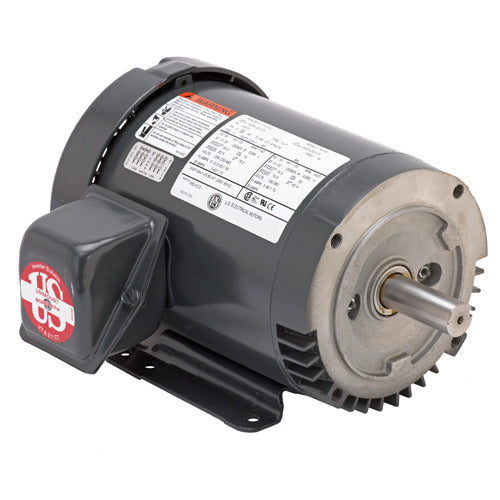

U.S. Motors U2P1GC General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U2P1GC is a general purpose motor designed for various industrial applications. This three phase motor operates at two horsepower and a speed of three thousand six hundred rpm. It is rated for a voltage of five hundred seventy-five volts and features a totally enclosed fan cooled (TEFC) design.

• AC motor suitable for general use
• Horizontal footed mount for versatile installation
• Continuous duty operation

Product Highlights

This motor is ideal for equipment like fans, blowers, compressors, and pumps. The robust design ensures efficient performance and reliability.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U2P1GC

Technical Specifications

• Enclosure: TEFC
• Insulation: F
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Poles: 2
• Hz: 60 Hz
• Motor Application: General Purpose
• Phase: Three Phase
• Full Load Efficiency: 86.5%
• C Dimension: 13.1 inches
• Service Factor: 1.15
• Frame Material: Rolled Steel
• Frame: 145TC
• Full Load Amps: 2
• RPM: 3600 rpm
• Duty: Continuous Duty
• Mounting: Horizontal - Footed
• Voltage Rating: 575
• Weight: 40.0 LB
• EAN or UPC: 786382087982
