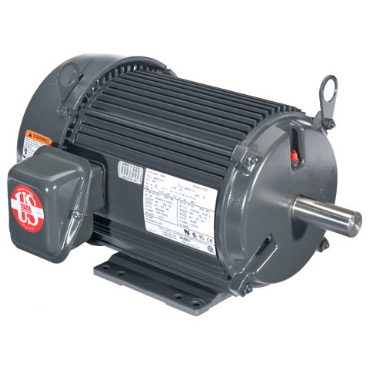

U.S. Motors U25P2H General Purpose Three Phase TEFC Unimount NEMA Premium Efficient - IE3 Motor

Product Description

The U.S. Motors U25P2H is a general purpose three-phase motor designed for various industrial applications. This motor features a totally enclosed fan-cooled (TEFC) design, making it suitable for tough environments. With a power rating of twenty-five horsepower and an operating speed of one thousand eight hundred RPM, it meets diverse operational needs in HVAC, pumping, and compressor uses.

• Power: 25 HP, 1800 RPM
• Voltage: 200, Three Phase, Continuous Duty
• Premium Efficient with 93.6% Full Load Efficiency

Product Highlights

This motor is ideal for applications involving fans, blowers, and compressors, featuring dual voltage ratings and capable of part winding starts.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: U25P2H

Technical Specifications

• HP: 25
• RPM: 1800
• Enclosure: TEFC
• Mounting: Horizontal - Footed
• Efficiency Group: Premium Efficient
• Duty: Continuous Duty
• Phase: Three Phase
• Voltage: 200
• Hz: 50/60
• Frame: 284T
• Weight: 290 LB
