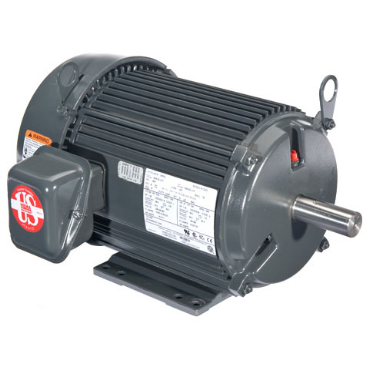

U.S. Motors U25P2DS General Purpose Three Phase TEFC, Unimount NEMA Premium Efficient - IE3 Motor

Product Description

The U.S. Motors U25P2DS is a general-purpose three-phase motor with a power rating of twenty-five horsepower and a speed of one thousand eight hundred RPM. It is designed for a variety of industrial applications including fans, blowers, compressors, and pumps. The motor features a totally enclosed fan-cooled (TEFC) design, ensuring durability and efficiency in operation.

• High efficiency with a full load efficiency of 93.6%
• Sealed and double shielded bearings for enhanced performance
• Available dual voltage ratings offer flexibility in installation

Product Highlights

This motor is ideal for continuous duty operation, providing reliability in demanding environments. Its robust construction and premium efficiency make it suitable for various industrial equipment.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U25P2DS

Technical Specifications

• Phase: Three Phase
• Voltage Rating: 208-230/460 & 190/380
• Full Load Amps: 65-59/29.3
• Duty: Continuous Duty
• Full Load Efficiency: 93.6%
• Motor Application: General Purpose
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• C Dimension: 27.3 inches
• Full Load RPM: 1,770 RPM
• Mounting: Horizontal - Footed
• Frame Material: Aluminum
• Insulation: F
• Service Factor: 1.25
• Weight: 280.0 LB
• EAN or UPC: 786382089337
