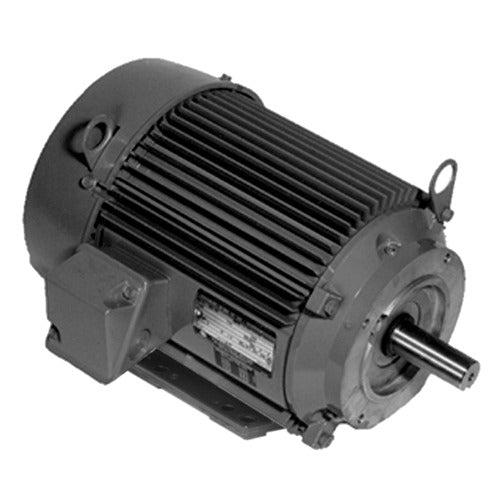

U.S. Motors U25P2DCR General Purpose Three Phase TEFC C-Face Footless Motor

Product Description

The U.S. Motors U25P2DCR is a general-purpose three-phase motor designed for various applications. This motor operates at 25 horsepower and has a speed of 1800 rpm. The unit is suitable for damp, dusty, or dirty conditions, making it ideal for use in pumps, compressors, and fans.

• TEFC enclosure protects from dust and moisture.
• Continuous duty rating ensures reliable performance.
• Dual voltage ratings enhance installation flexibility.

Product Highlights

This motor is essential for general industrial tasks where efficiency is necessary. Its design employs a robust enclosure that meets NEMA premium efficiency and has a long lifespan.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U25P2DCR

Technical Specifications

• Power: 25 hp
• Voltage Rating: 208-230/460 & 190/380
• RPM: 1,800
• Frame Size: 284TC
• Phase: Three Phase
• Enclosure Type: TEFC
• Efficiency: 93.6%
• Full Load Amps: 65-59/29.3
• Service Factor: 1.25
