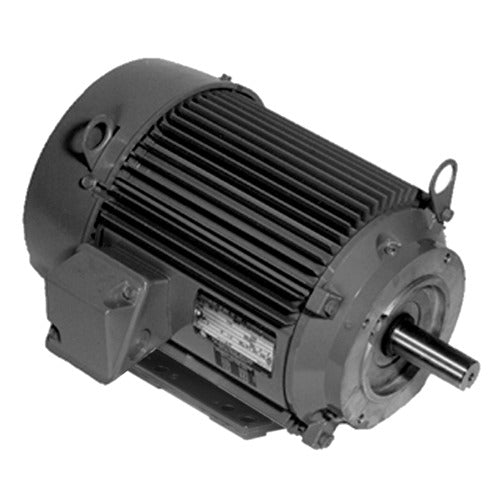

U.S. Motors U25P2DC General Purpose Three Phase, TEFC Unimount NEMA Premium Efficient - IE3 C-Face Footed Motor

Product Description

The U.S. Motors U25P2DC is a general-purpose motor designed for various industrial applications. With a power output of twenty-five horsepower and an operating speed of one thousand eight hundred RPM, this motor is suitable for three-phase power systems. It operates at voltages of two hundred eight to two hundred thirty or four hundred sixty volts. The U25P2DC motor features a horizontal footed mount and is built with a TEFC enclosure, making it durable in various working environments.

• 25 horsepower
• TEFC Enclosure for protection
• Suitable for pumps, fans, and compressors

Product Highlights

The U25P2DC motor is ideal for applications requiring reliability in damp and dusty settings. It has a class F insulation that manages heat effectively, and its robust build features sealed bearings for low maintenance.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U25P2DC

Technical Specifications

• Power Output: 25 HP
• RPM: 1,800
• Phase: Three
• Voltage Rating: 208-230/460
• Enclosure: TEFC
• Insulation Class: F
• Service Factor: 1.25
• Weight: 290 LB
• Mounting Type: Horizontal - Footed
